Little Wee Birdy

Here’s what I’ve got so far with my Raven’s Landing dagger. The icicle part is developing nicely but … I have to admit that the bird is simply too small for the size of the knife. That, and one wing is up a little higher than the other. I can’t really fix that so I’ve been forced to carefully saw the bird off the dagger and I will now have to sculpt another (LARGER) raven.

Don’t worry, the bird survived the removal and is doing just fine. I’ll keep it for some other project. Probably a Halloween decoration. I learned a lot with the first sculpting so I really don’t count it as time wasted.

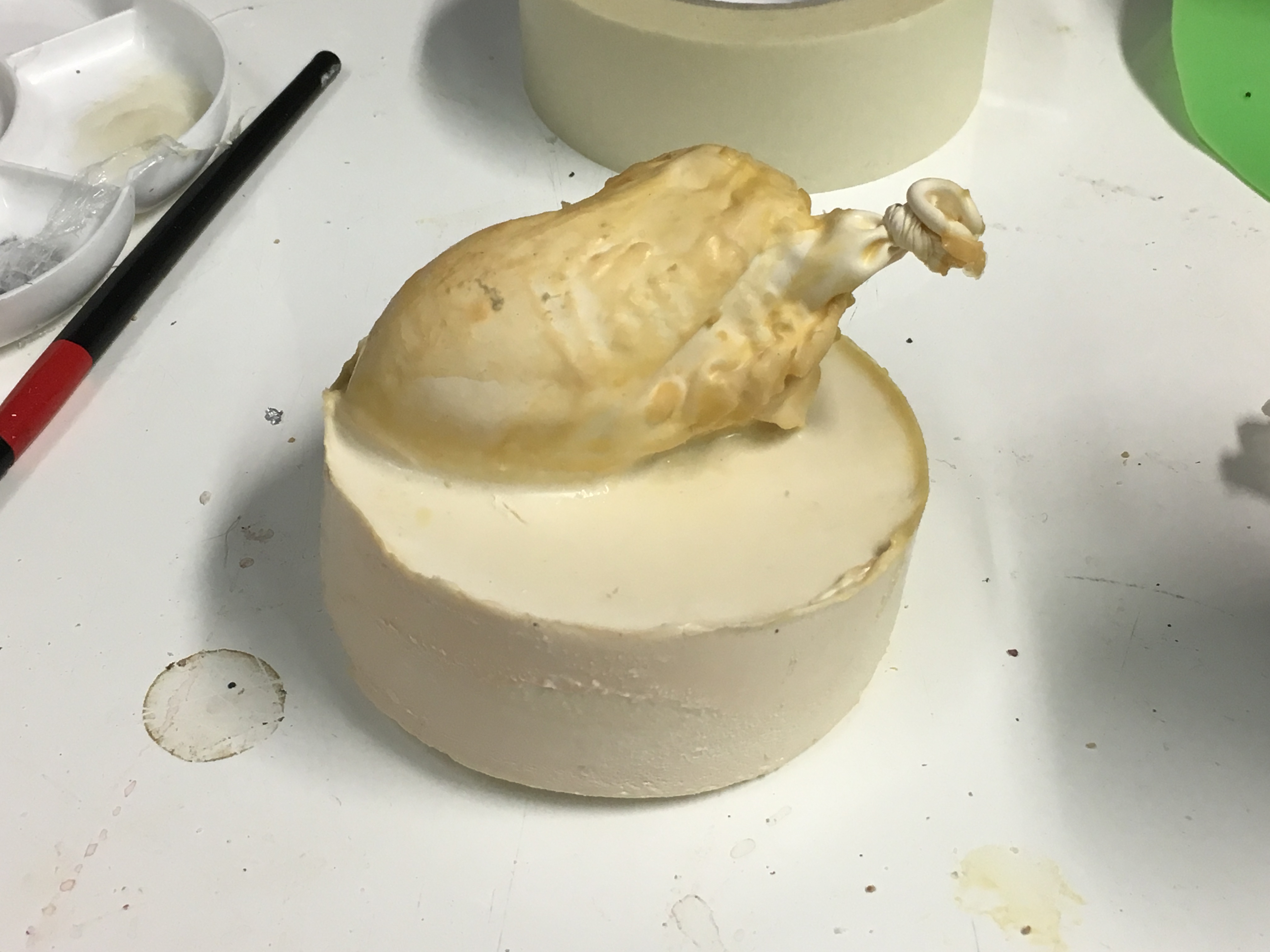

Now I’d like to introduce you to this little whoopsie. What happened to this thing? First I need to explain why there’s a balloon. When you have a container full of liquid latex for moulding, you need to be careful of it drying out on contact with the air. That includes the air inside the container! How do you preserve your latex for as long as possible?

You inflate a balloon a little bit and stick it in the container to take up space. That way, you get much less air touching the latex and it lasts longer.

That’s all well and good when you use your latex before its expiry date. I … didn’t. *sad trombone* So when the latex began to solidify inside the container, it bonded with the balloon (because it’s also made of latex!). It also gave the balloon several extra layers of latex, so now the air is trapped inside the very sorry looking thing and it can’t deflate.

I will keep this little abomination as a trophy of my failures. I shall call it “Garbage Heart” because it looks like some manner of artificial organ and can’t be used for anything but a paperweight.

What else have we got going on this week? I’m troubleshooting a problem I’m having with the Arabian Nights sword circuitry. (Can’t figure out where I flubbed up the circuit so I just have to do it again.

Annnd I have to go fight with Posti because they’re holding onto my carving cups until I pay them the duty fee. Which I already paid to customs directly. Have I mentioned lately how much I hate shipping? Get it together you guys. Seriously. It’s really hard to do business in a remote country when I can’t get my freaking stuff.

Wish me luck!

I should take more pics

I got really in the swing of things last week and totally forgot to take pictures of most of the stuff I was doing! Silly me. Anyhow, I sanded and buffed the Arabian Nights sword. It’s ready for its light to be installed! I just have to go pick up the electronics this morning and then mill the slot for the electronics into the handle. I cannot wait to show you this project once it’s completed. I have some really great ideas for the handle.

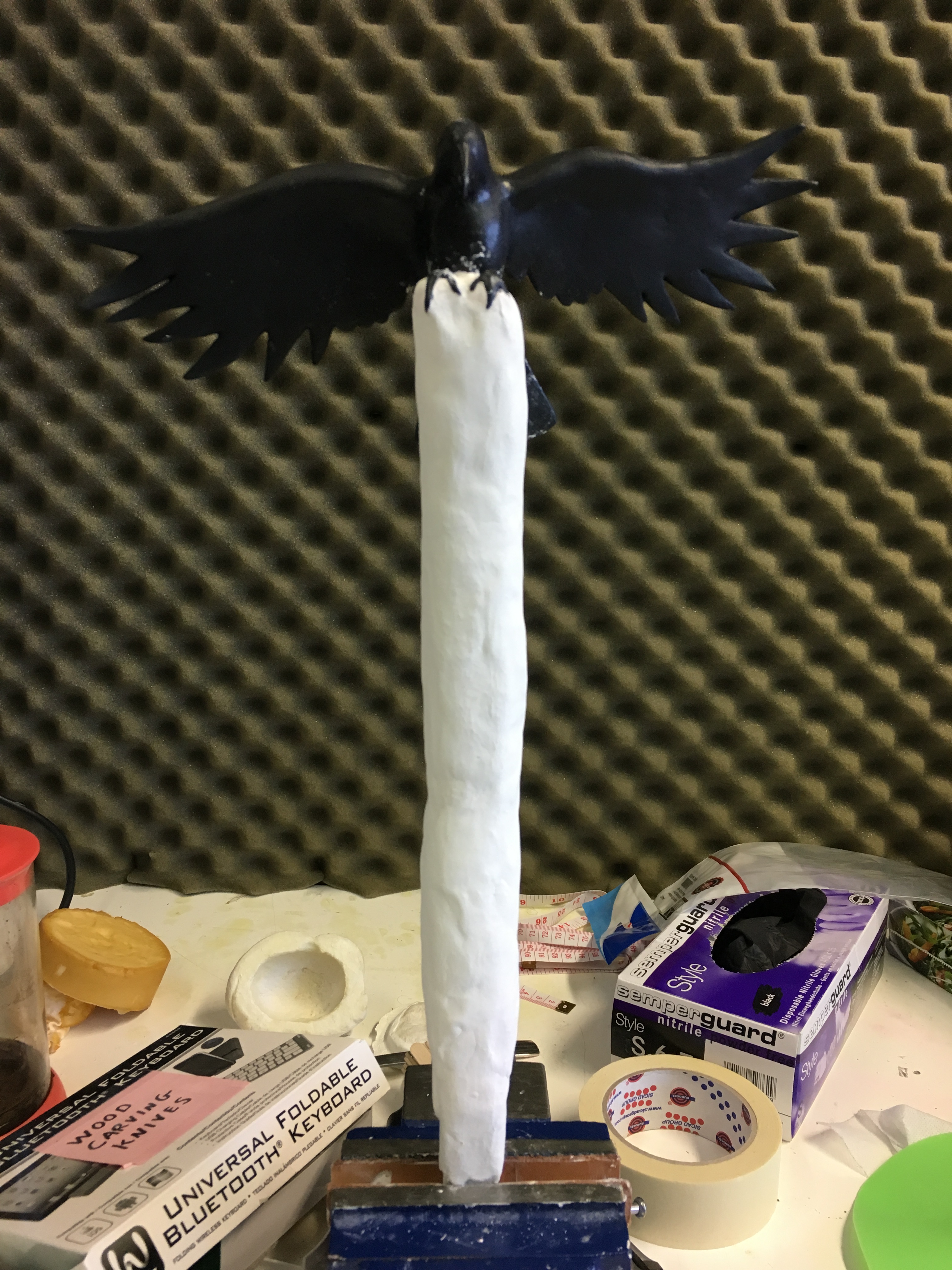

I also got the first layer of air-dry clay on the Raven’s Landing annnd …

You can see the problem can’t you? Yep. I mounted him too far back. He looks like he’s falling off backwards! The handle of the knife needs to be in line with the blade or the middle part there will just bend and snap when it’s used. No good!

So I simply sawed off the top portion of the stick where the raven is perched, cut a diagonal piece out of the blade, and re-mounted it with epoxy. It took a couple tries to get the angle right. Now it has a second layer of clay on it and is awaiting my attentions when I arrive at the workshop today. 🙂

I did a little more work on the witchlight prototype. I’ve been having issues with getting the “lid” to fit on it nice and flush so it’s not clear where the divide is. *grumble* Lots of tinkering because I have to wait for the air dry clay to dry in between each thing I change. Oh well. At least I should be done before the series ends. 😦 And here I thought the electronics were going to be the hard part! I figured that out ages ago.

Anyway. I’ve got to figure out where this electronics shop is so I can go get my lighting stuff. Wish me luck!

Polishing Day

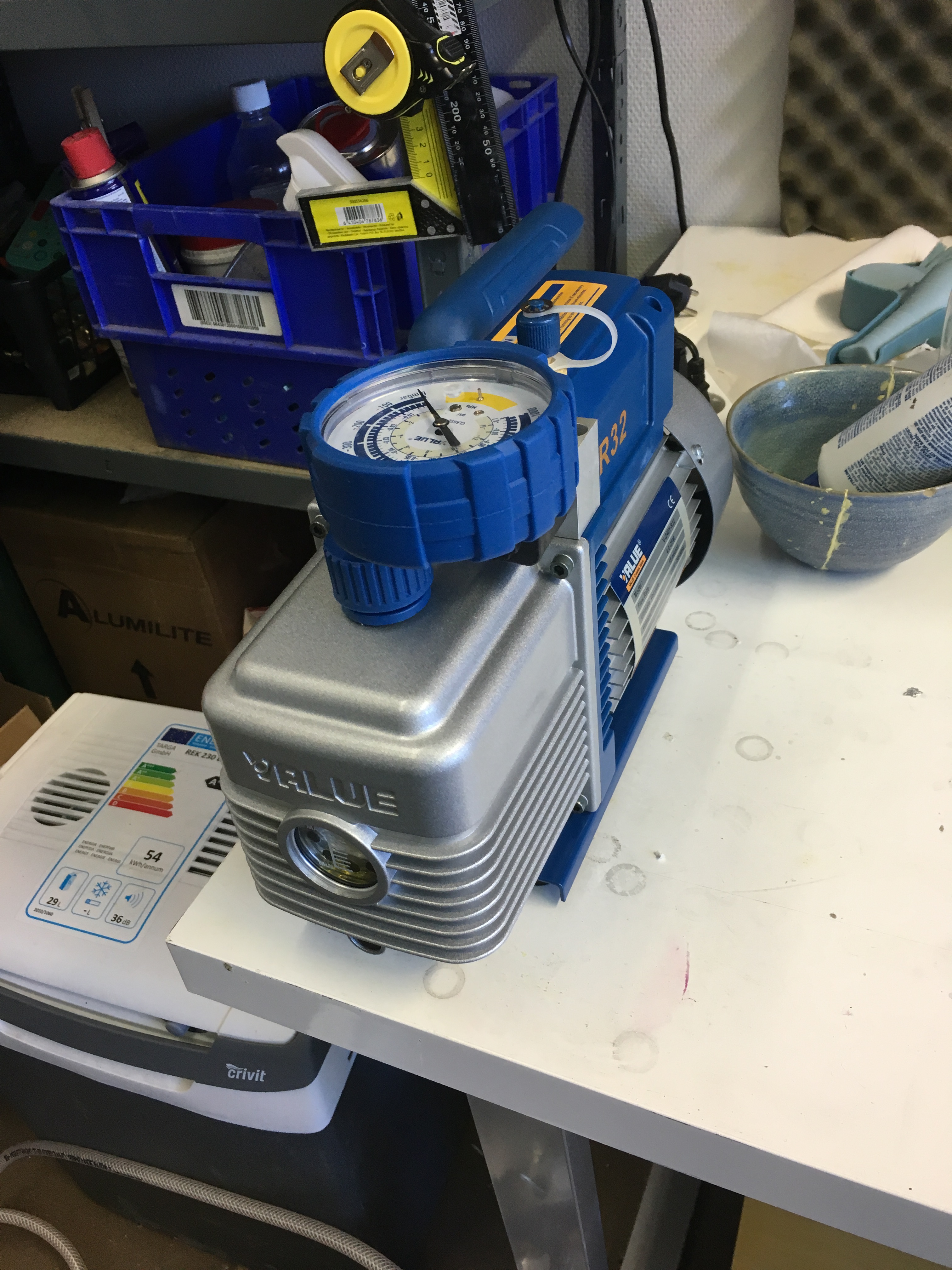

I have got some great news for you all. Check out my new baby!

What? You thought I had one of those stinking screaming mini-humans? Hah!

After I accidentally loaded my old vacuum pump with hydraulic oil instead of vacuum pump oil (oops!), it has never worked right again. Overheating. Loud banging noises. Foaming oil in the sight glass … It was bad. I needed a new one.

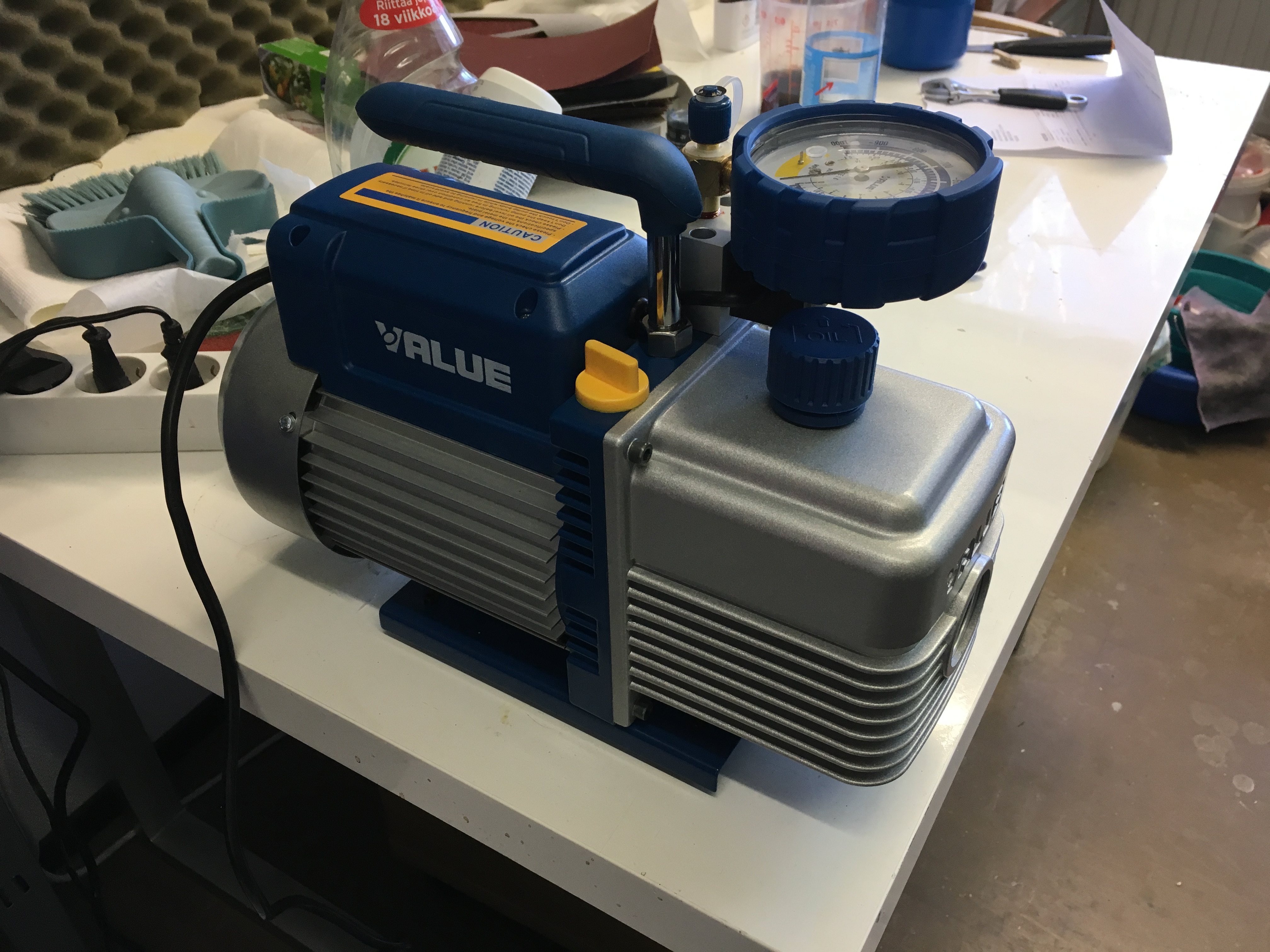

Thankfully, my buddies at Unicorn Tools had my back and got me a great price on a bigger, beefier vacuum pump. This one is getting pampered, I can tell you that much. They even sent along a spare container of the correct oil. Thank you guys so much! It takes about 3 seconds for this beast to pull all the air out of the vacuum chamber and it hums along like a champ under load. Love it!

Bask in its beauty.

And now that I have a working vacuum pump once again, I can cast things! Woo! Back to making swords!

Speaking of making swords …

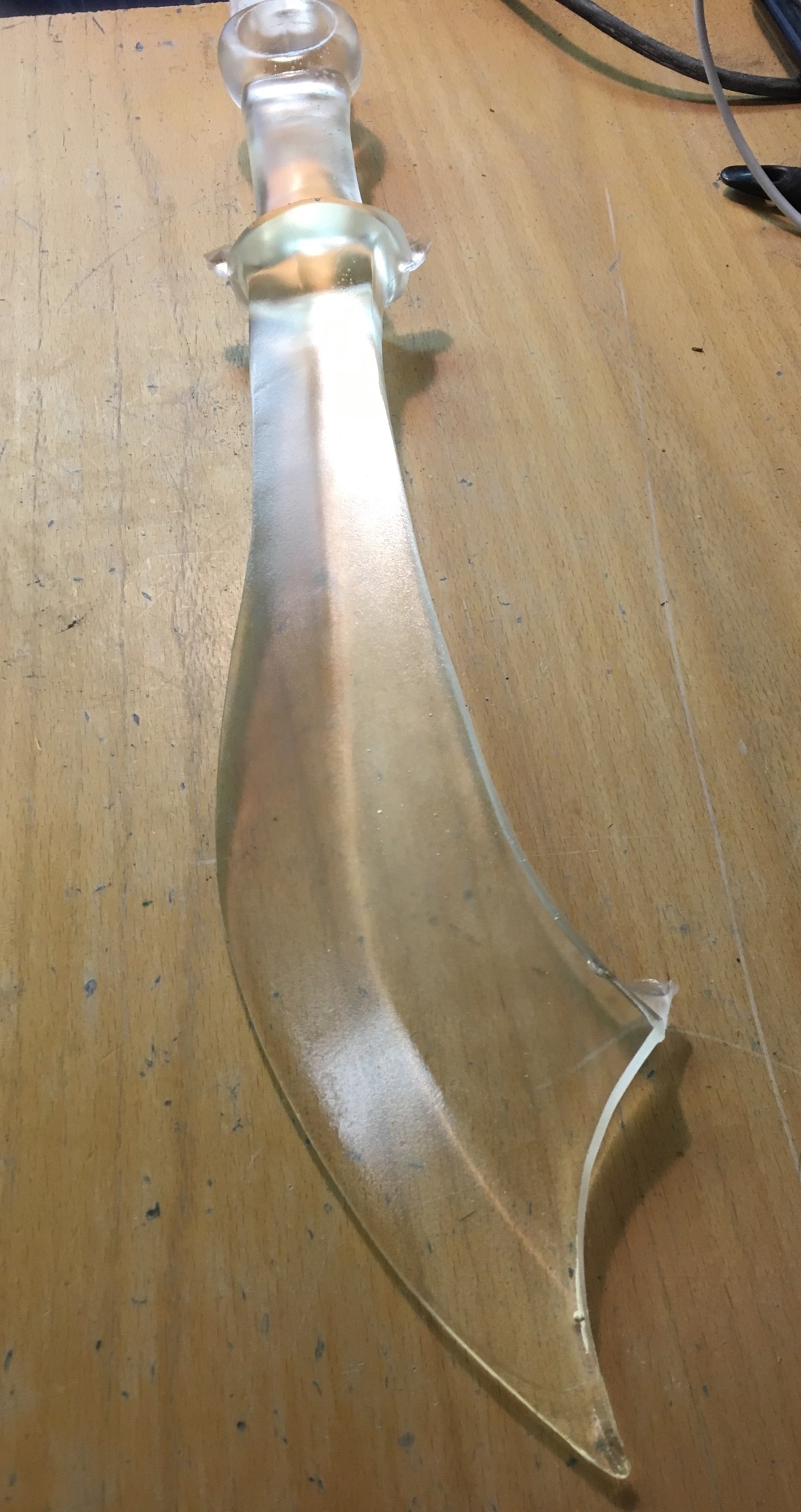

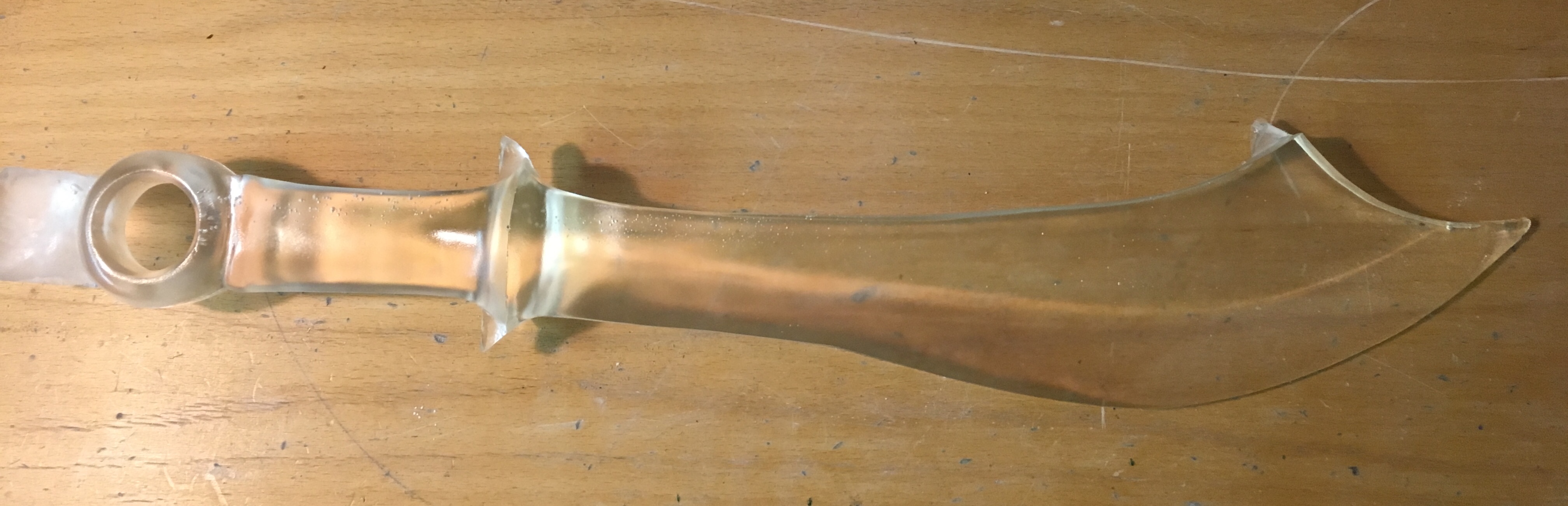

Oh yes I did. Those of you familiar with my models will recognise Zaapiel, the exotic ring-sword inspired blade. The funky “spikes” sticking off of it are simply the little tabs that are created by the bubble traps in the mould. They get trimmed off before sanding and polishing happens.

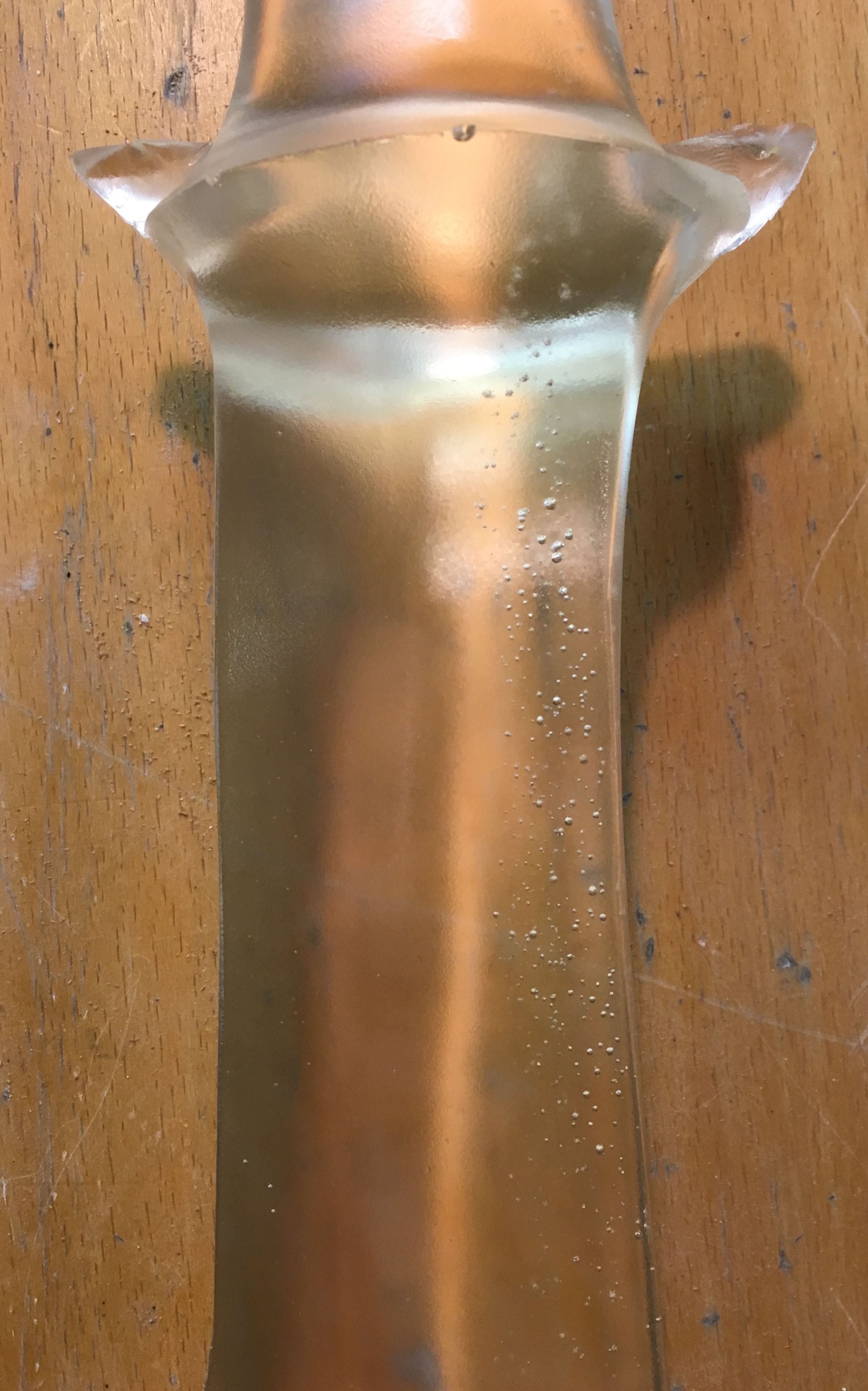

Now this sword has some bubbles in it due to a resin issue I had, but the person it’s for said it looked cool as-is so we’re going with it. If you look closely, it looks like they’re some kind of magic spell firing down the length of the blade from the hand of some powerful magus.

ZAP!

That’s going to look really cool when it’s lit up. 🙂

The issue I was having with the resin was that I was using Alumilite Clear Slow and this resin tends to “gel” up after a few months of not being used. If this happens to you, do not panic and do not throw it away. All you need to do is put it in a water-tight container and give it a hot water bath for a few hours and it will be liquid again.

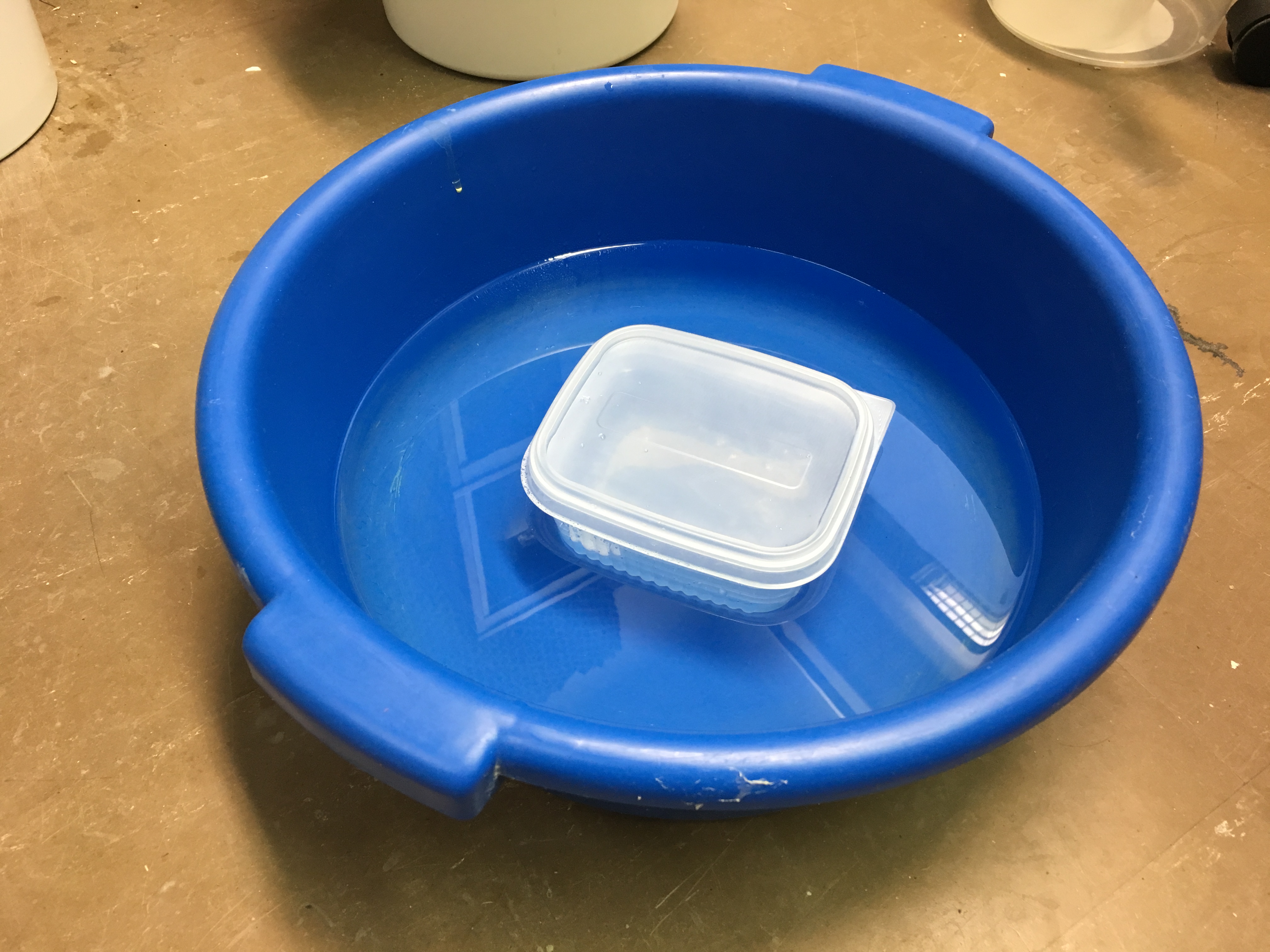

I portioned out about 500mL of resin, stuck it in a Ziploc container, sealed it, and popped it in a hot water bath. Every now and then I took it out, dried it off really thoroughly, opened it up, and stirred it until it was the liquid consistency I wanted. Now, you’ll notice I emphasised “dried it off really thoroughly” and that’s because resin is really, really finicky about moisture. Even a little dampness. So you can imagine what a drop or two of water in the mix would do to it. Be careful when you’re handling it.

So I re-liquefied it, vacuumed it, and still got bubbles in the finished product? Yep. That was my fault. You see, resin cures faster when it’s warm. Annnnd I forgot to cool the resin down after its hot water bath. I just went straight to the degassing and mixing and pouring. Whoops. I got a little too gung-ho and eager to try out this new sword mould. So I should have gotten twelve minutes of working time with the resin but I had slightly less than that because it was quite warm and the bubbles couldn’t escape as well before it hardened.

But we still ended up with a really cool result so I guess I’m learning stuff about mould-making and handling my materials effectively. Yay for learning!

Today, of course, I move on to the next stage of the build and that means wet-sanding the whooooole surface and getting a consistent overall clarity and shine. And that means I’m working from home today where I have running water. Yup. Picture me standing in the bathroom with my hands in the sink for … let’s not think about how many hours. That’s my work day today. LOL

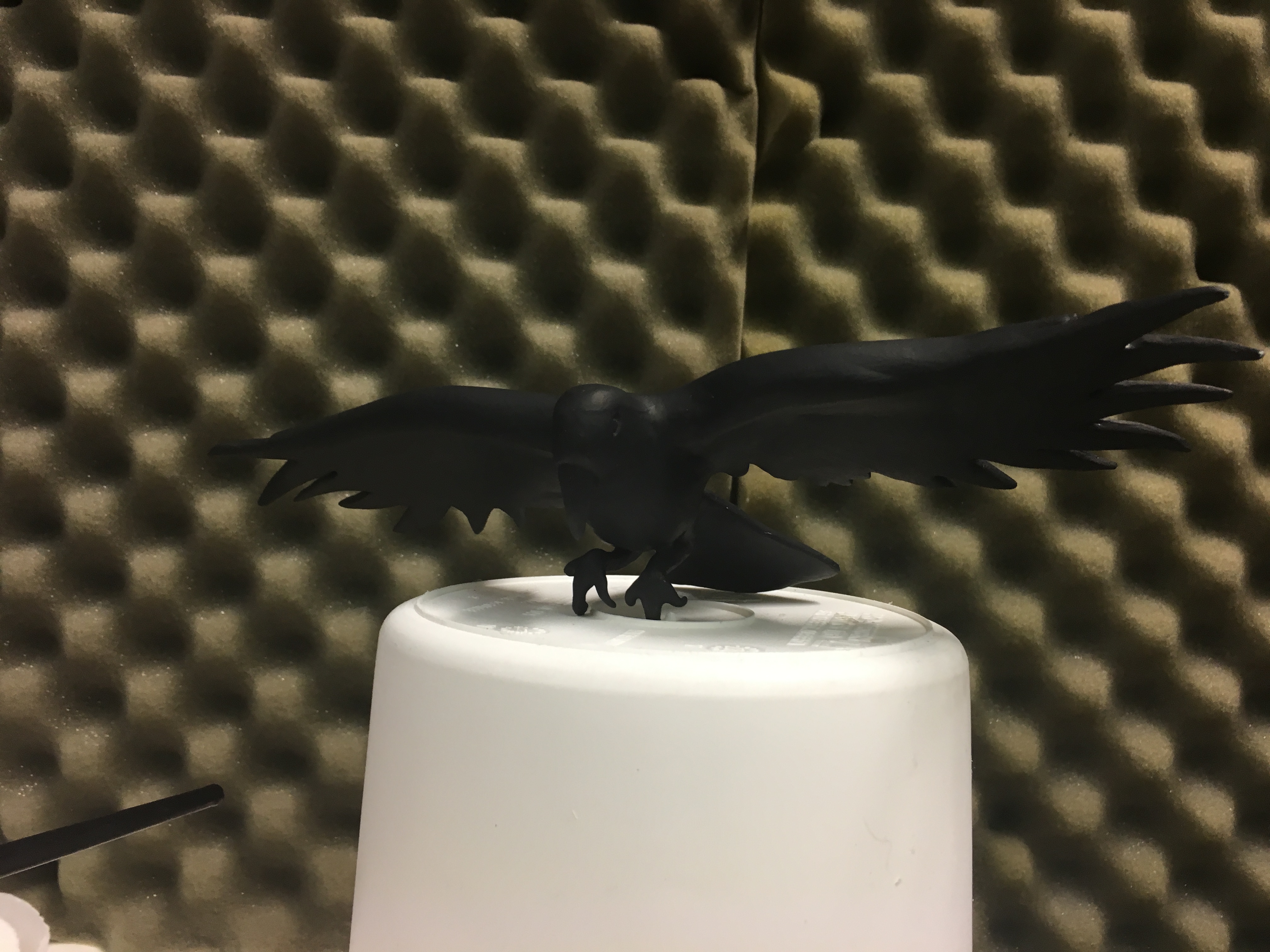

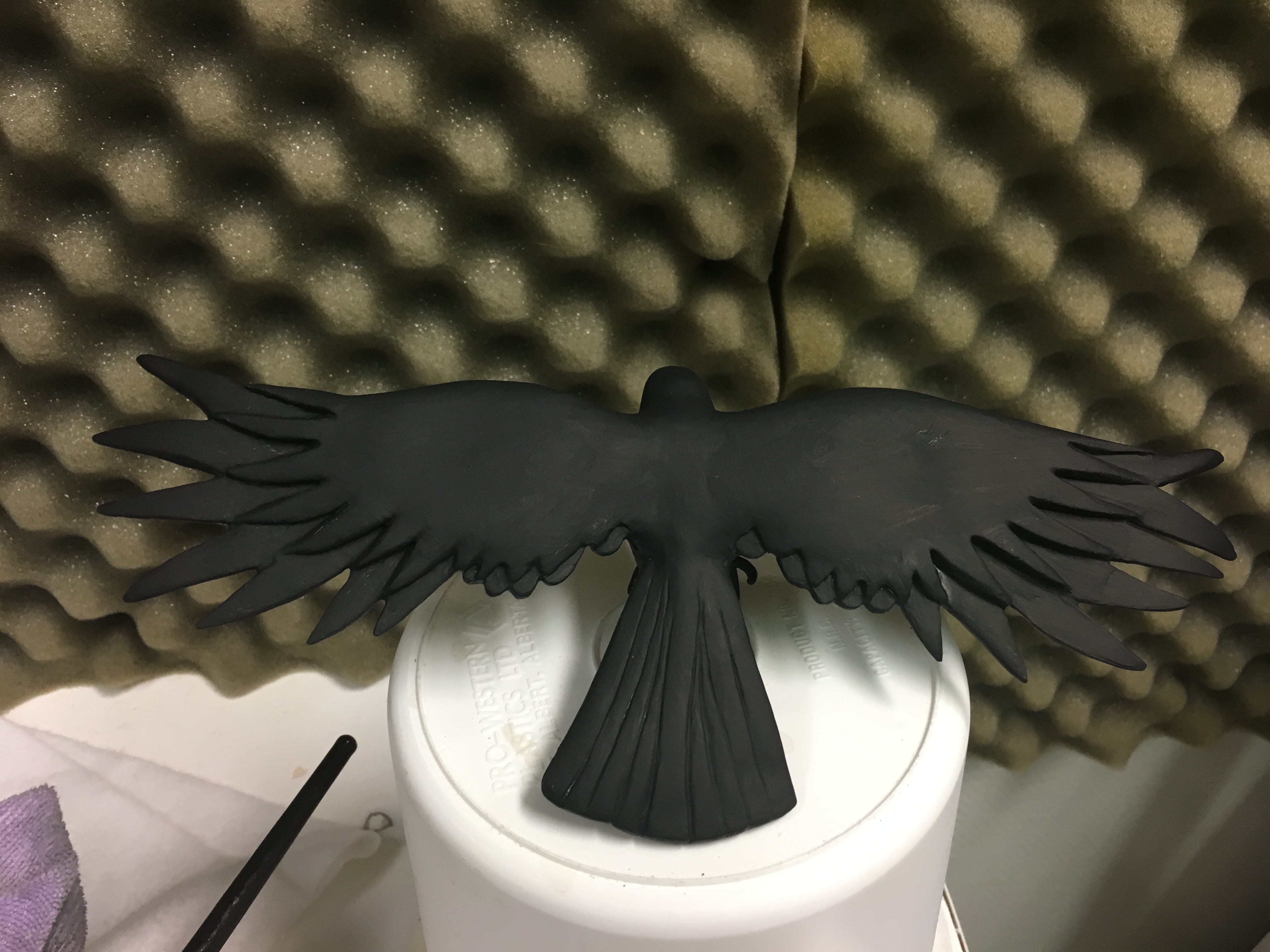

As a little bonus on the end here, check out where we are on the raven statuette!

Sorry it’s a little hard to see its features on camera. In person, though, the black paint makes it easier for me to see imperfections and correct them. I noticed that the angle of its beak was a little off on its right side so I had to do some sanding and filing and a little carving to get it the way I wanted it. This piece will be getting some more smoothing, re-painting (to check again for errors), and sealing before I move on to the next part of the project.

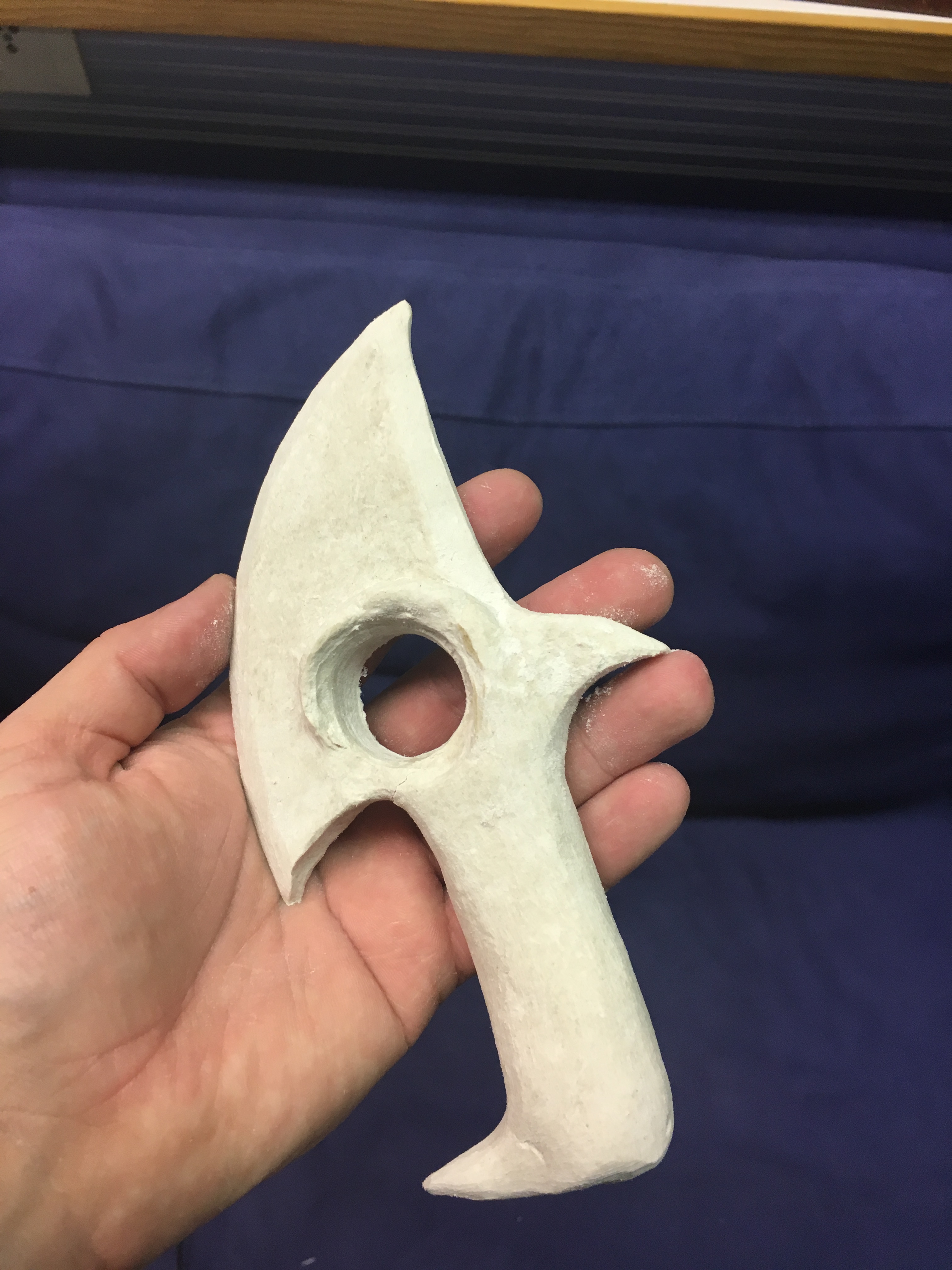

As a bonus-bonus, here is the current state of “Thorn” (working name). It’s so comfortable to hold.

When can we expect to see it appear in my Etsy store? Well … that depends on when the person who asked for it gets back to me. LOL

Okay, time for me to stop yammering and go pick up some more sandpaper. It’s sleeting outside so uh … wish me luck. XD

Little Wee Pokey

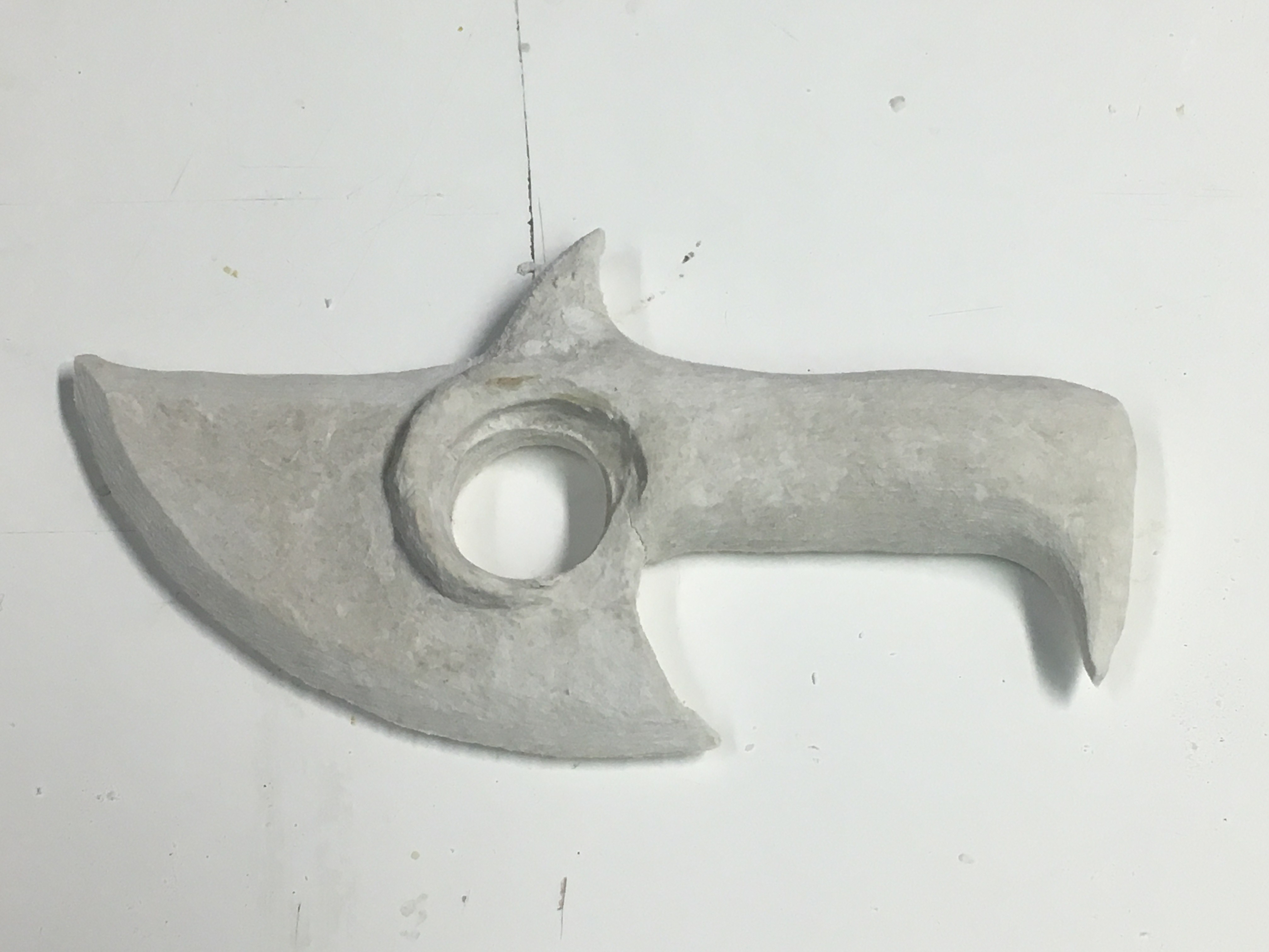

It’s so cuuuuute! This was a really good test of the new DIY paperclay stuff. Light, strong. mouldable, and sandable. I’m quite pleased!

This here knife is currently going by the name of Thorn, just so I have something to call it. It is double-edged for maximum utility (slashing or stabbing) and provides a little bit of protection to the hand while blocking another blade.

Yes, yes, panicking parents, it’s not actually sharp. I don’t make real weapons. I make art pieces. I do envision how a blade would actually work if it were real, though, so my designs at least make some logical sense. So many fantasy weapons just look … preposterous.

Like A: it’s half the size of your body; you’re never going to lift it, and B: if you managed to, you’re never going to successfully stick it in the other guy, and C: if you somehow managed to accomplish that (like if he was asleep or something) you would never be able to get it out again. Or quite possibly D: your dagger has six blades on it they’re all curved at an angle even a snake would find obscene and half of them are pointed back at you what are you doing with your life?

Much more practical.

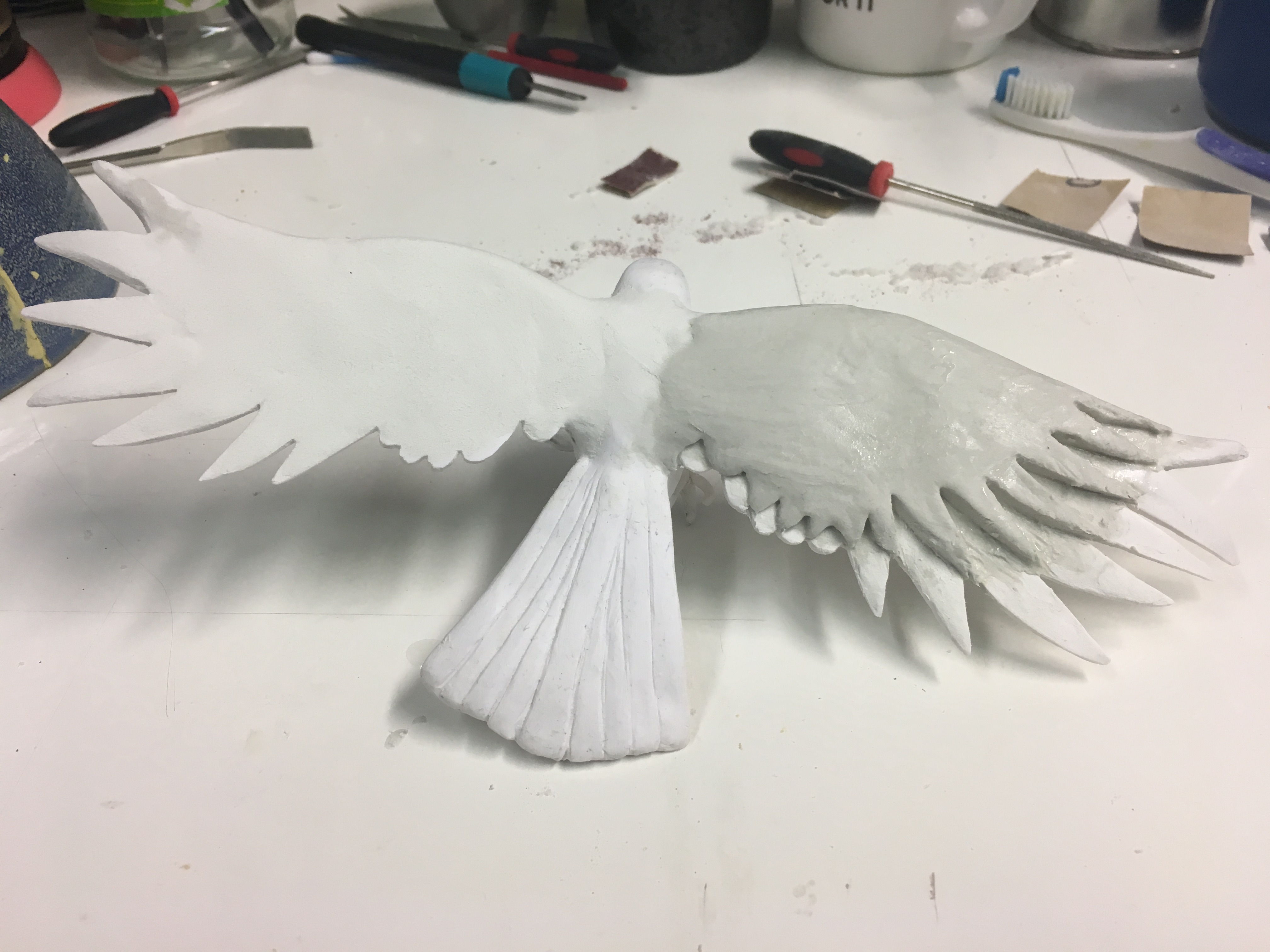

What else have I got for you today? Well, I put some more reinforcement on the wings of the raven.

Cause a cross-guard needs to actually … guard. Yeah. This one is more decorative than anything else though if I’m perfectly honest. I’m okay with that. ^_^

Alright, off to the workshop. Wish me luck!
