Clay Days

So! My vacuum pump has finally bit the dust. Poor thing. 😦 I am going to try to get the filter cleaned and looked at and maybe something replaced but I wasn’t willing to take the thing apart until I knew I had a nice new pump on the way that I could be sure would work. Cause let’s face it, it’s better to have a pump that sort of works for a short period of time than a pump that doesn’t work at all.

I have ordered that new pump and I am awaiting its arrival. Hopefully it will come soon! What am I doing in the meantime? Some design work. Some experiments with clay. Annnd slowly progressing on that neato raven sculpture I’ve been working on.

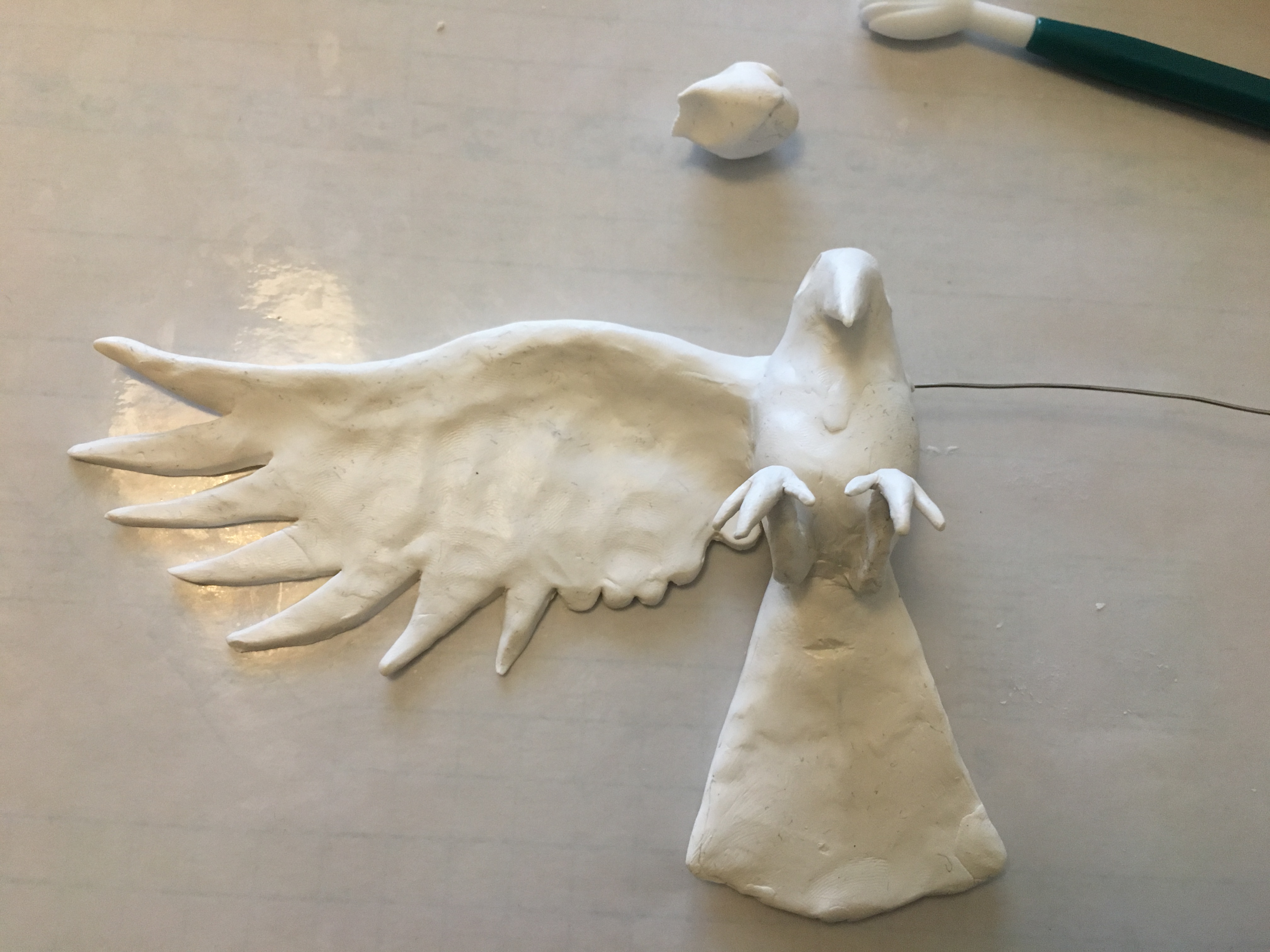

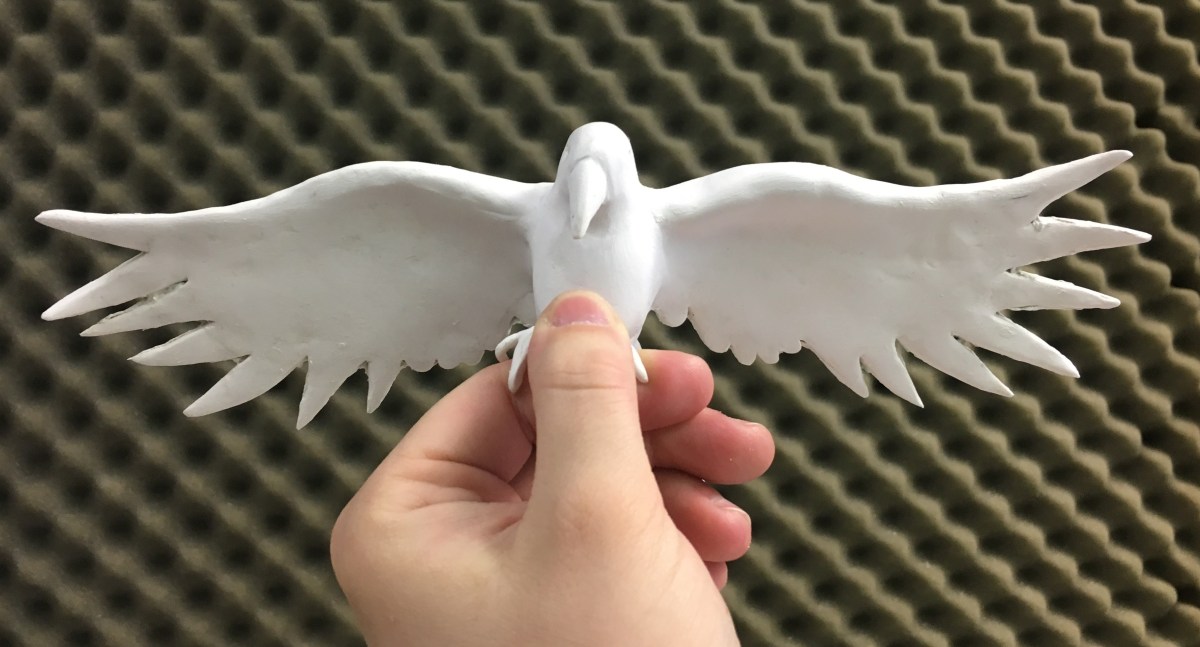

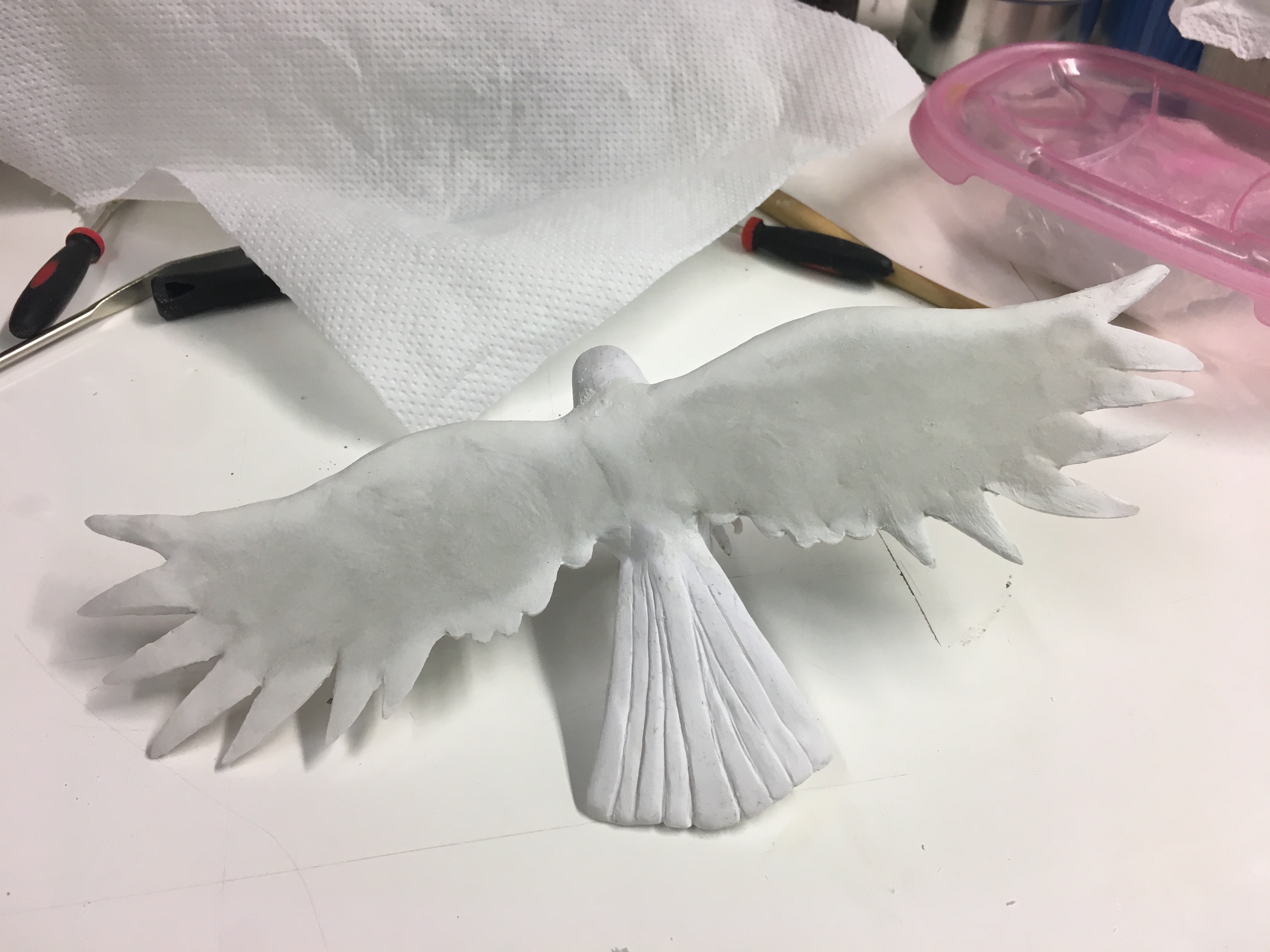

I’ve been reinforcing the raven statuette with DAS paperclay. You might remember me mentioning that most of the sculpture was made with Sculpy. I got to the point with it that it was too wiggly to safely work on the details without smushing the back of the wings or vice versa so I just decided to bake it and finish the detailing in an air dry clay.

I’m quite pleased with how it’s going.

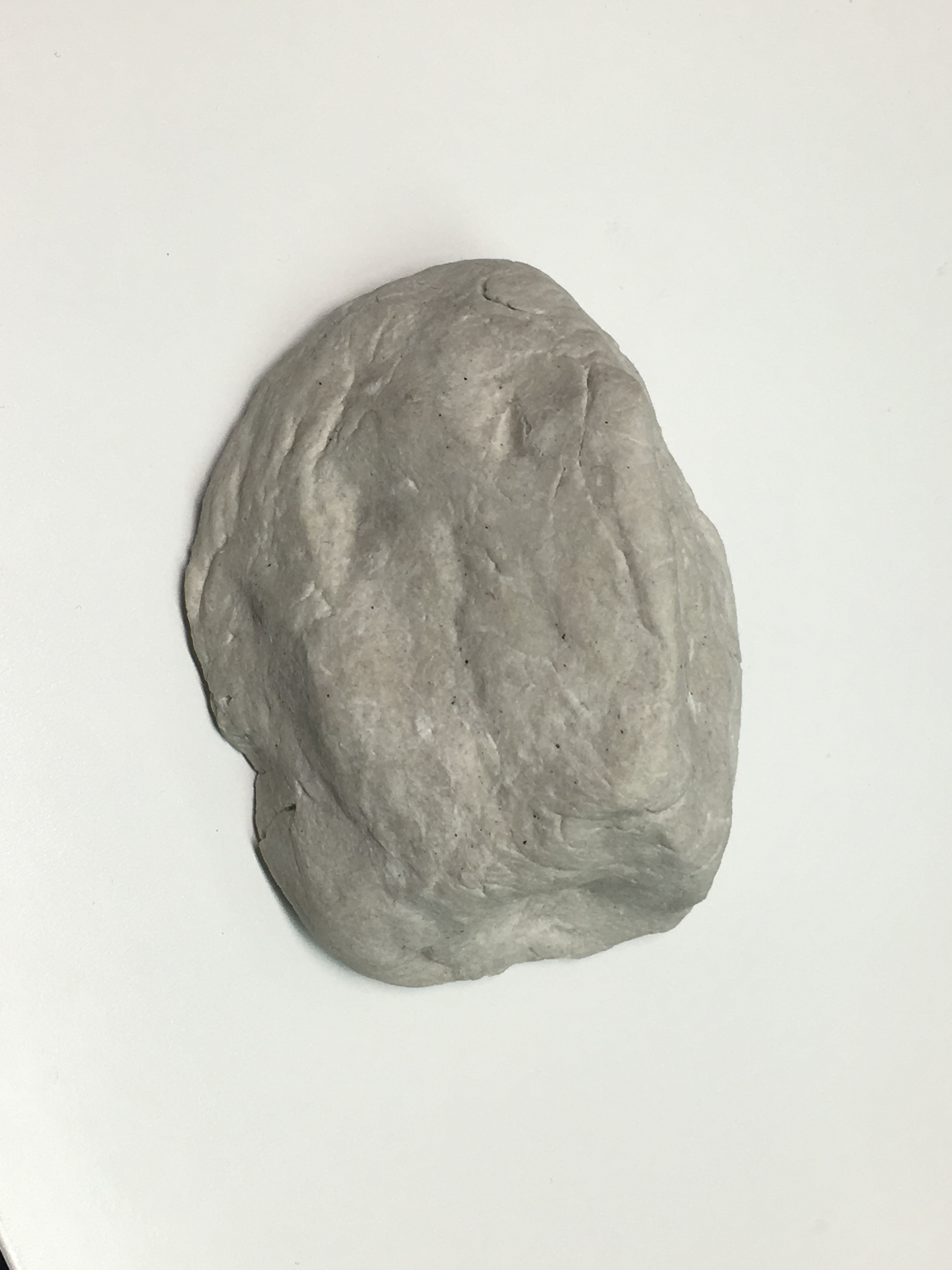

Behold! A rock!

It’s a lovely rock. I know what you’re thinking. Ethan’s finally snapped. Now he’s showing us his rock collection on his work blog. But before you stage an intervention, let me reveal to you that this rock has a secret!

It’s hollow! Remember that DIY paperclay recipe I said I was going to try out? Well, I did and it is fantastic for creating stone-like textures. It’s quite hard but I found I was able to hollow it out quite easily with a small carving tool. This is to be the beginning of my new witchlight model.

Betcha thought I forgot eh? Nope! I’ve just been struggling with the execution of the project. It’s a rather demanding thing to accomplish and I really want to get it right and make it look cool.

Here’s the video of the paperclay recipe I used. I followed it precisely. It turned out great! After five-ish days or so it got stiff and lumpy so I had to add some more water to it and beat it up a little to get it going again. It was still chunkier than it was when it was fresh so I’d very much recommend only making as much as you need and using it within a day or two. I’ll let you know how the rehydrated clay works, versus the fresh stuff.

So I mentioned design work! I’ve had a request for the tiniest little Seraph Blade I’ve ever made. 15.22cm (6″) total. I was stumped as to how I was supposed to make something that wouldn’t look ridiculous and end up with the handle being longer than the blade. But then my wife mentioned skinning knives to me. Those are short but wide and have a really nice curve to them.

I took some inspiration from various models I looked at and came up with this design. The middle, ring, and pinkie finger rest on the handle proper while the index finger goes through the hole in the blade. I added a thumb guard to keep the hand safe from sliding onto the edge of the blade when it’s all slippery with demon ichor. 😉

Demons thinking they’ve caught a lucky break and found a Shadowhunter unarmed will be in for a nasty little surprise. It might be intimidating to get that close and personal with the infernal, but a hunter’s gotta do what a hunter’s gotta do. I know some of you will have the moxie to pull it off.

I’ll have some more progress pictures for you soon. Everybody cross your fingers for a quick shipping of my new vacuum pump so I can get that pretty Arabian sword cast in resin! Can’t wait to show you the completion of that project!

Blades and Birds

Hoo boy do I ever have a lot of pictures to show you today! First, we get to look at the newly created mould for Zaapiel for the super cool Arabian Nights project. Yay! I am so very pleased with how it turned out especially because my vacuum pump was dyyyying throughout the process of degassing it. (Seriously, I need a new one. My wallet is sad. 😦 )

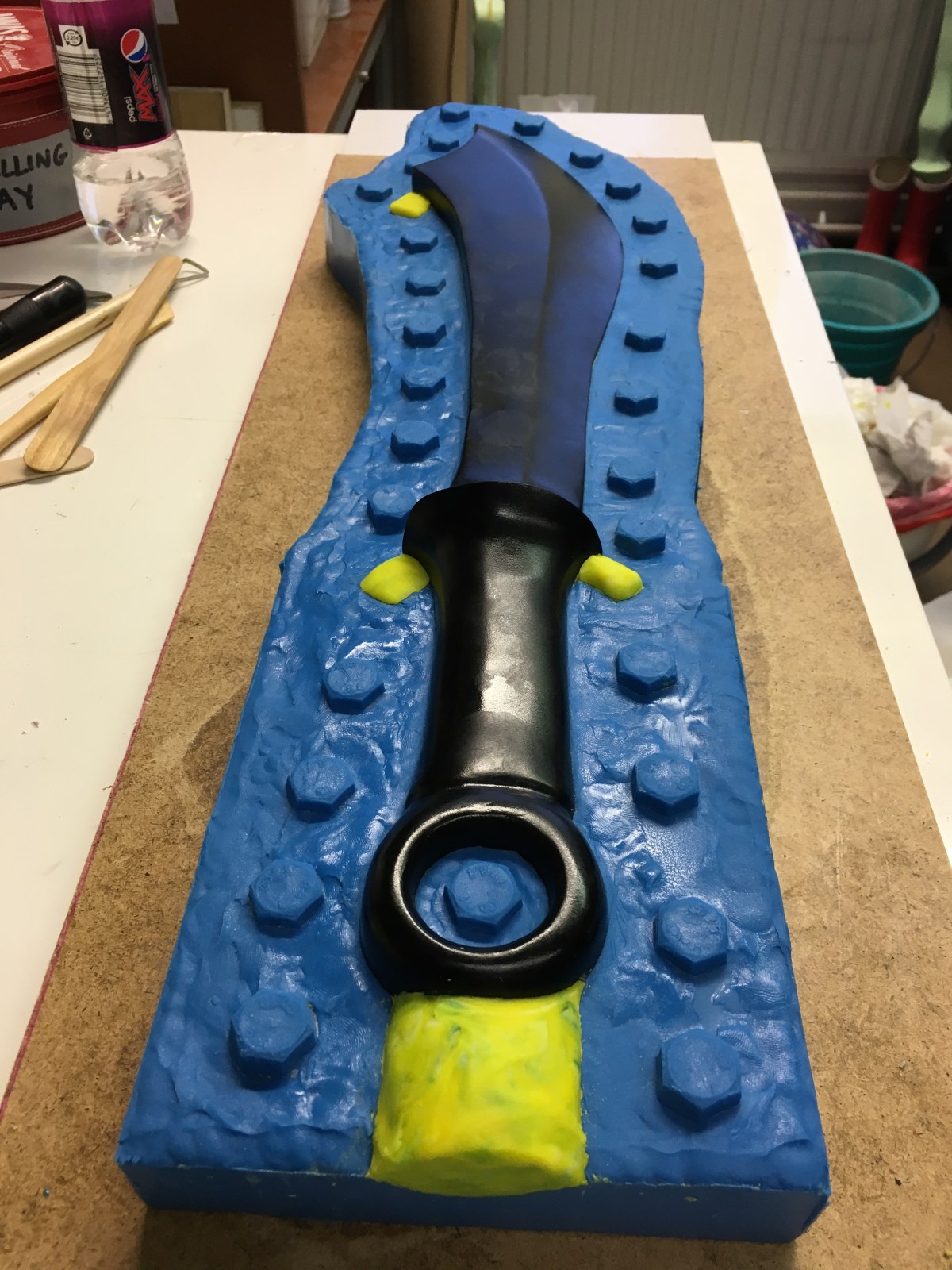

What lurks beneath this slab of blue goo?

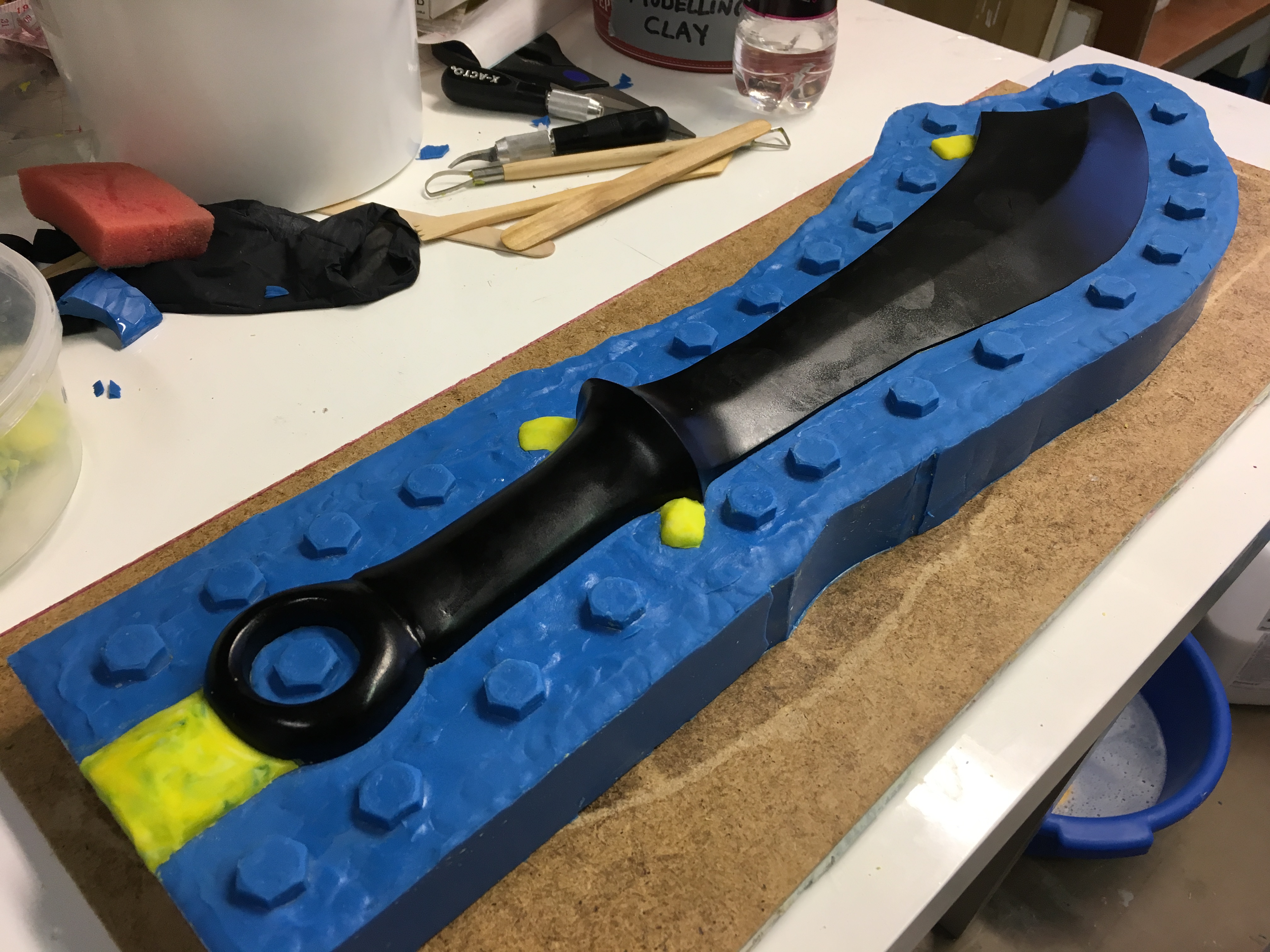

It’s a sword! (As if anybody had any doubts about what it was… LOL) That’s the first side done. I actually managed to remember to take photos of the mould box this time.

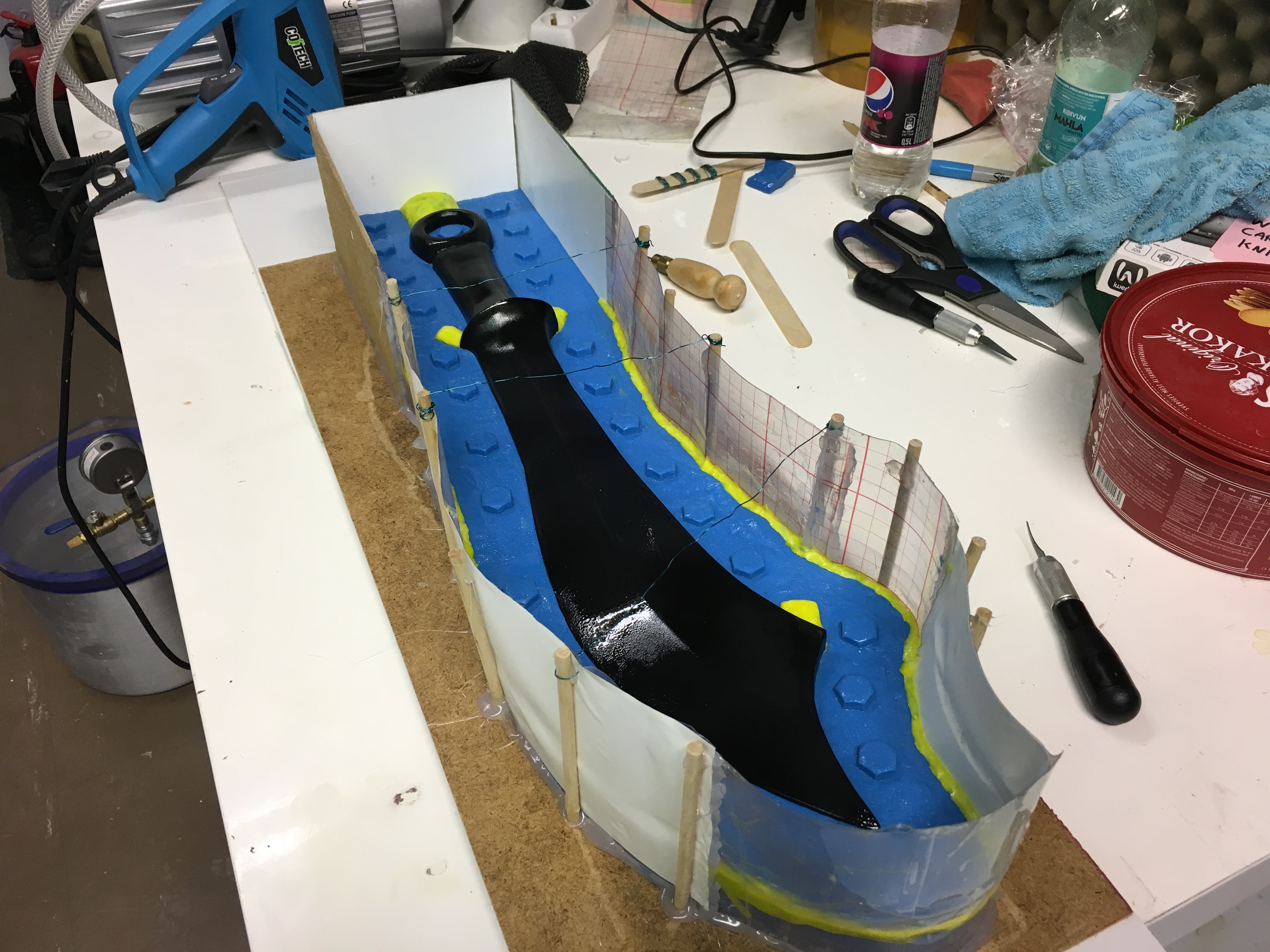

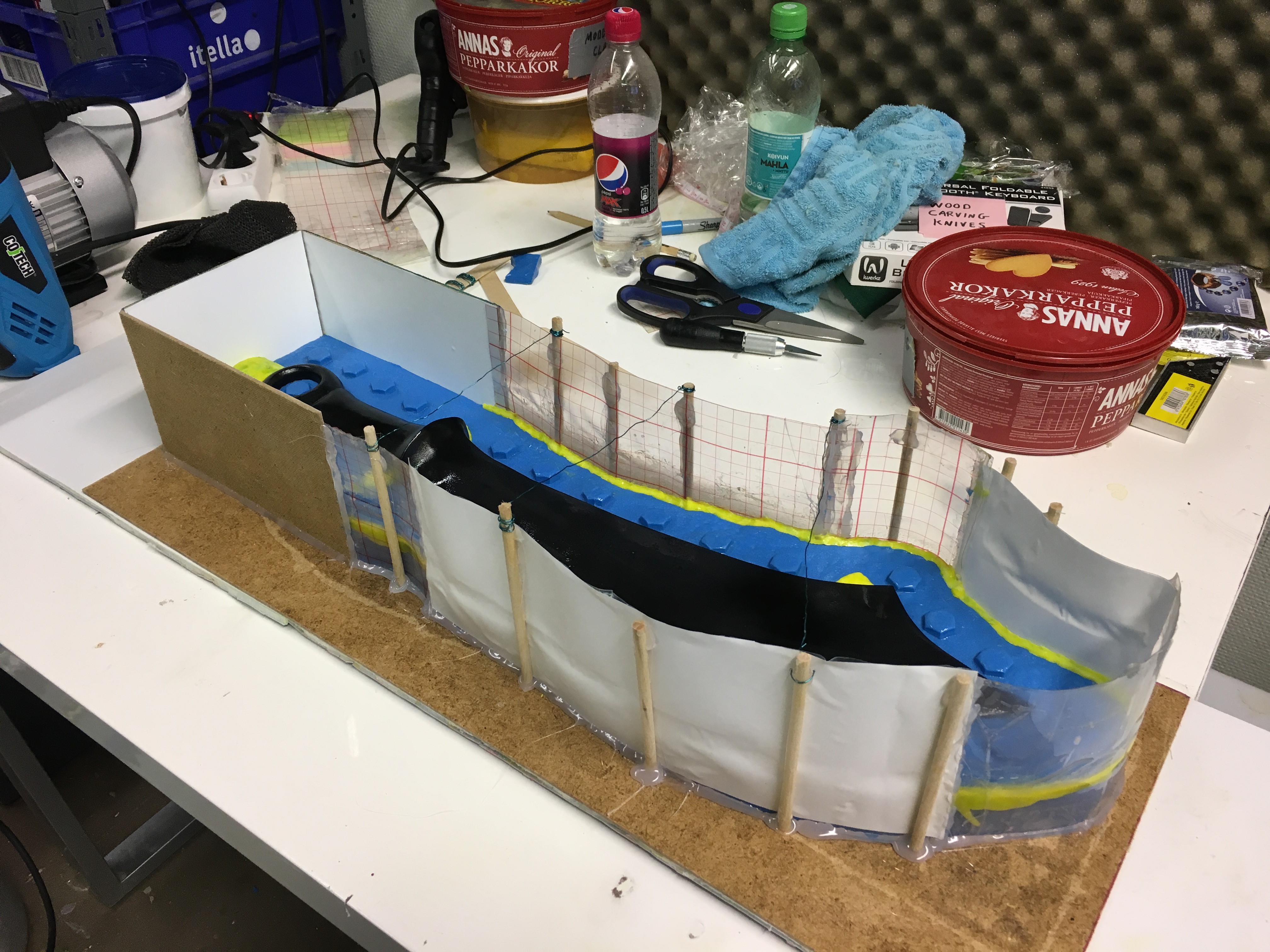

Let’s have a little peek at the anatomy of this mould box here and explore some money-saving tricks! The straight parts near the handle are simple MDF board with laminate on one side to keep things from sticking to its porous surface. The wiggly parts all around the blade are flexible plastic sheet. The upside of using this sort of sheet, is that I can make it the shape that I need instead of one big rectangle every time. This saves money on silicone.

The downside of using the flexible sheet is that it takes longer to set up and it’s more fiddly. It also takes more hot glue to stick together and fill gaps. The wooden sticks you see are there to keep the plastic sheet at a 90 degree angle so the two halves of the mould will actually line up. The wire that stretches across the width of the box in three places helps those six reinforcement sticks from bowing outward when the weight of the silicone starts to push on the walls as it’s poured in.

If you choose to use this method of moulding, take a moment to consider how much you charge (or would charge) customers for your time per hour. Think about how long it will take to get the mould box the way you want it. How much will that time cost? Now compare that to the price of the silicone you will be saving by shaping the mould box more closely to the object you’re moulding. Which will be cheaper?

In this case, I saved approximately 100 euros of silicone. Since I charge 10 euros per hour for my time, and it took me less than 10 hours to fiddle with the mould box, I saved money by using the plastic sheets. Your results may be different, so it’s worthwhile to check!

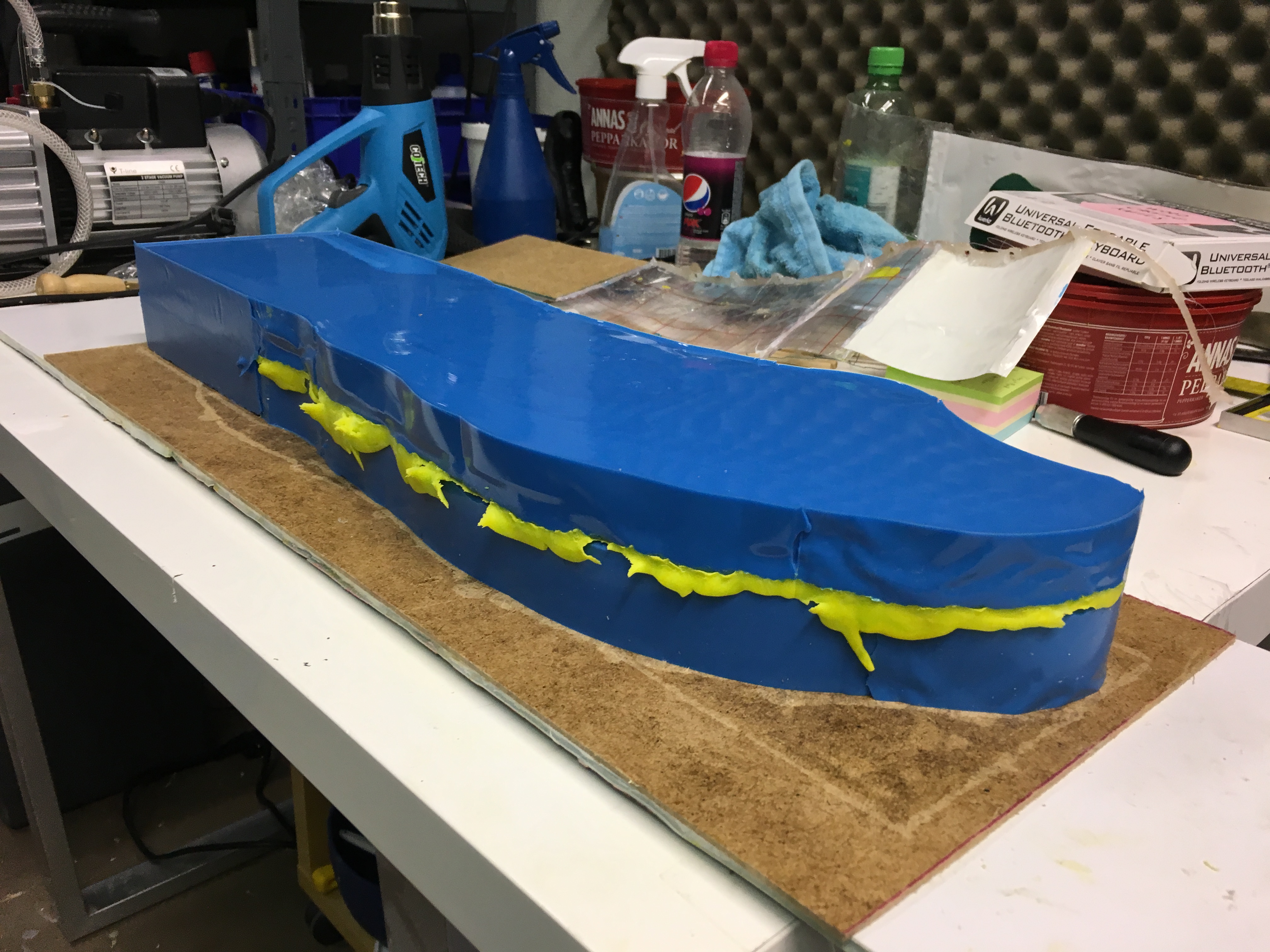

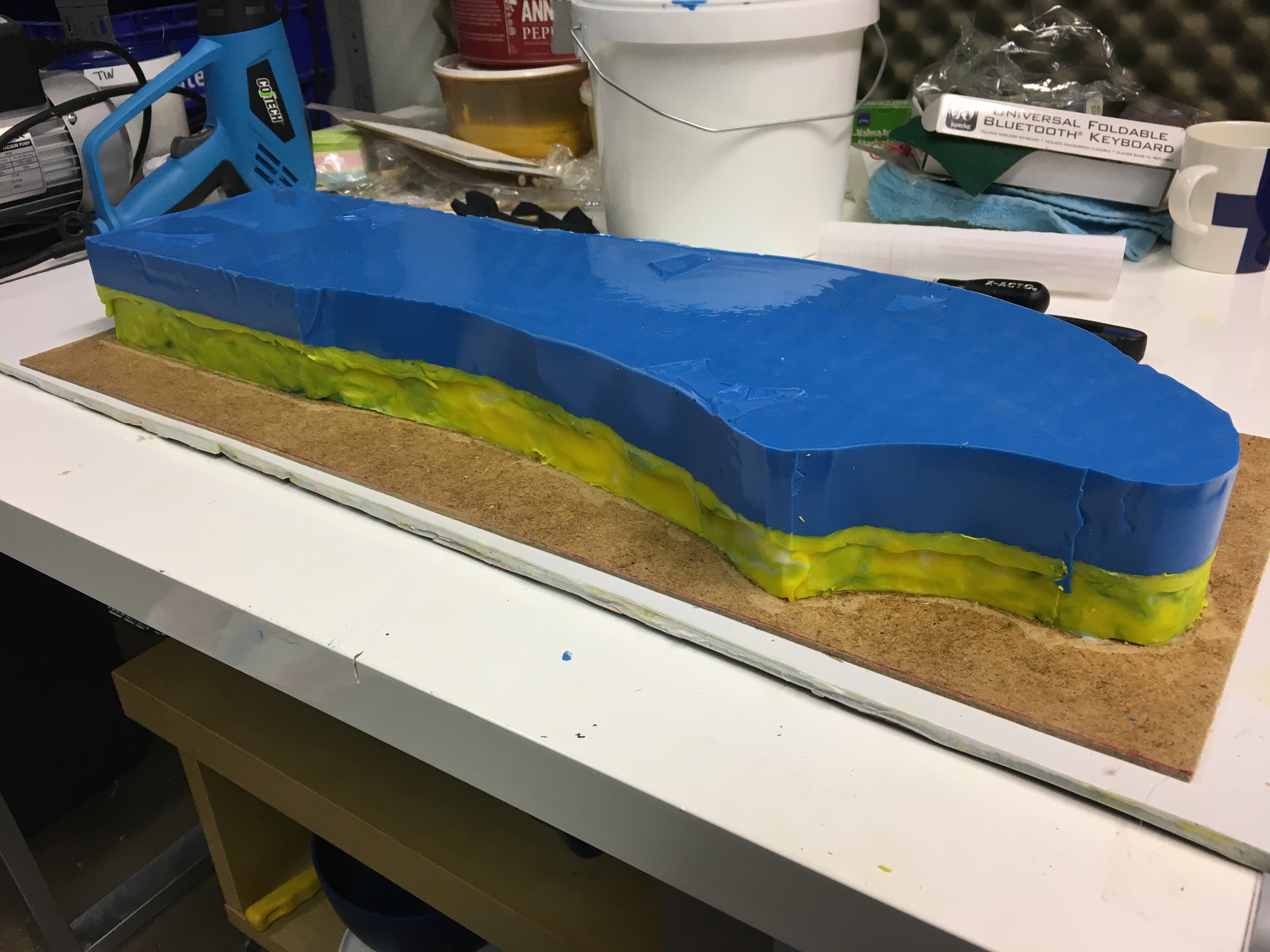

Back to the pictuuuuures! Here’s the crazy silicone sandwich we all have come to know and love. I’m proud to say I didn’t have any leaks throughout the entire process. Gosh I’ve come a long way from where I began. It seems like only yesterday I —

… you know what, nevermind. Let’s go back to the pictures. Shush.

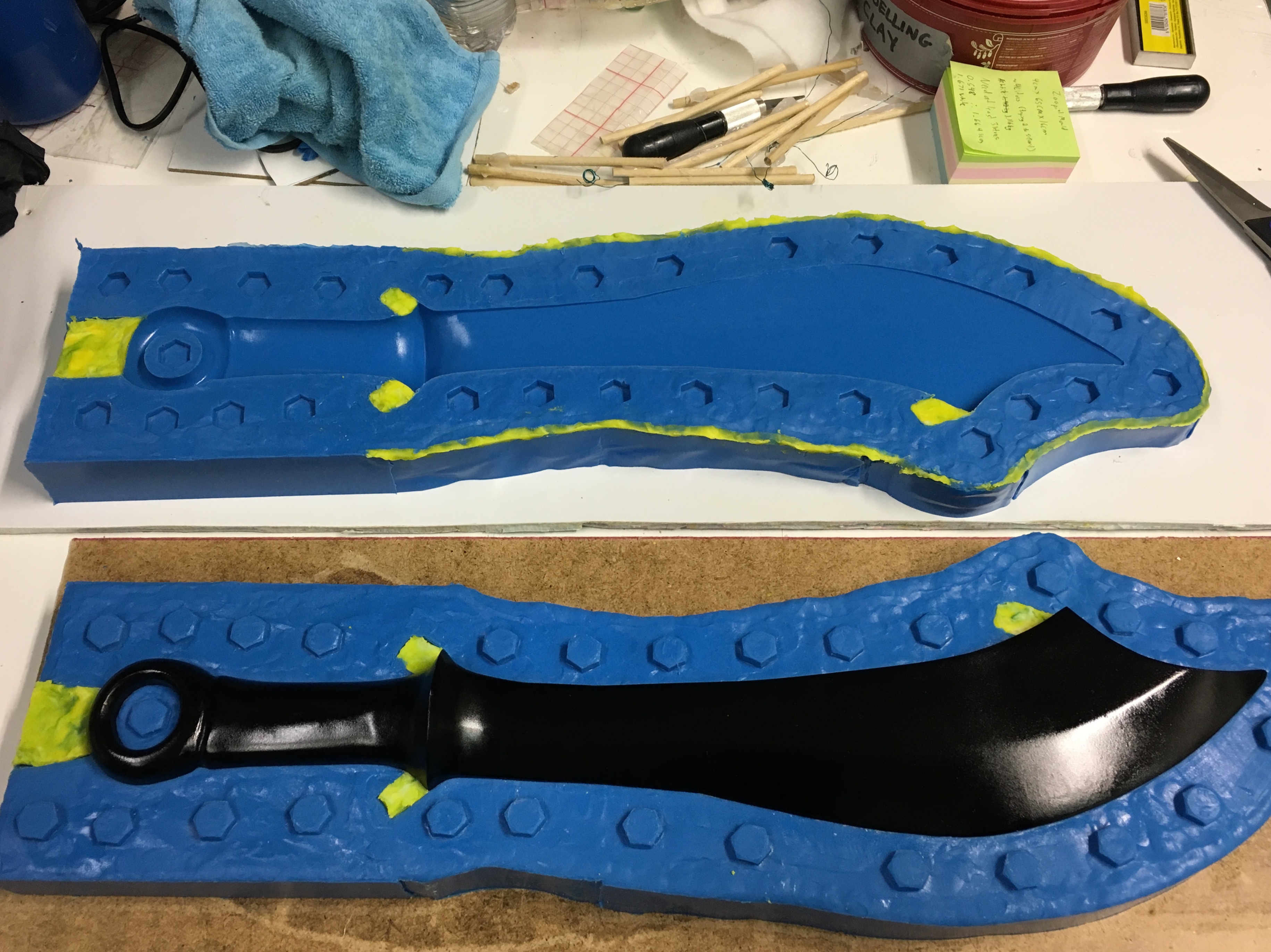

It’s a win! Two beautiful, bubble-free halves of a sword mould. I cannot wait to get resin into this baby and see what it can do. Will my new bubble-trap design work? Is everything truly straight and perfect? I don’t know! We’ll have to find out when I get my new vacuum pump so I can degas the resin properly. No skipping steps! That’s the way to get a crappy result.

Now, I mentioned birds in the title didn’t I? What was that all about? Well! I’m ready to reveal to you the beginnings of a new project. It has nothing to do with Shadowhunters. (*gasp!* I know. It’s crazy isn’t it?) This new project that I’ve been so secretive about is part of a creative vision that has deep personal meaning to me. I hope to share this dream with you so we can all enjoy it together.

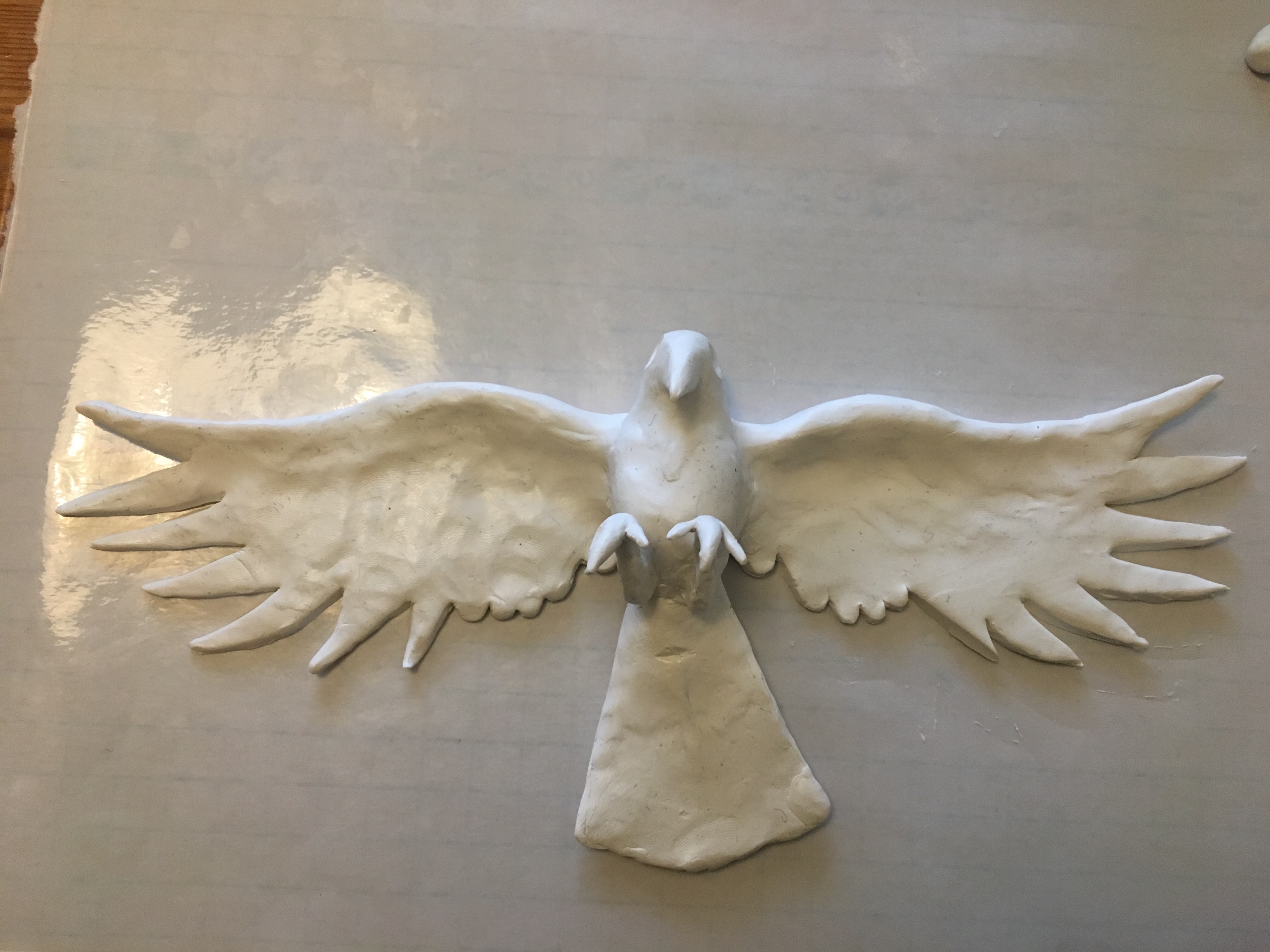

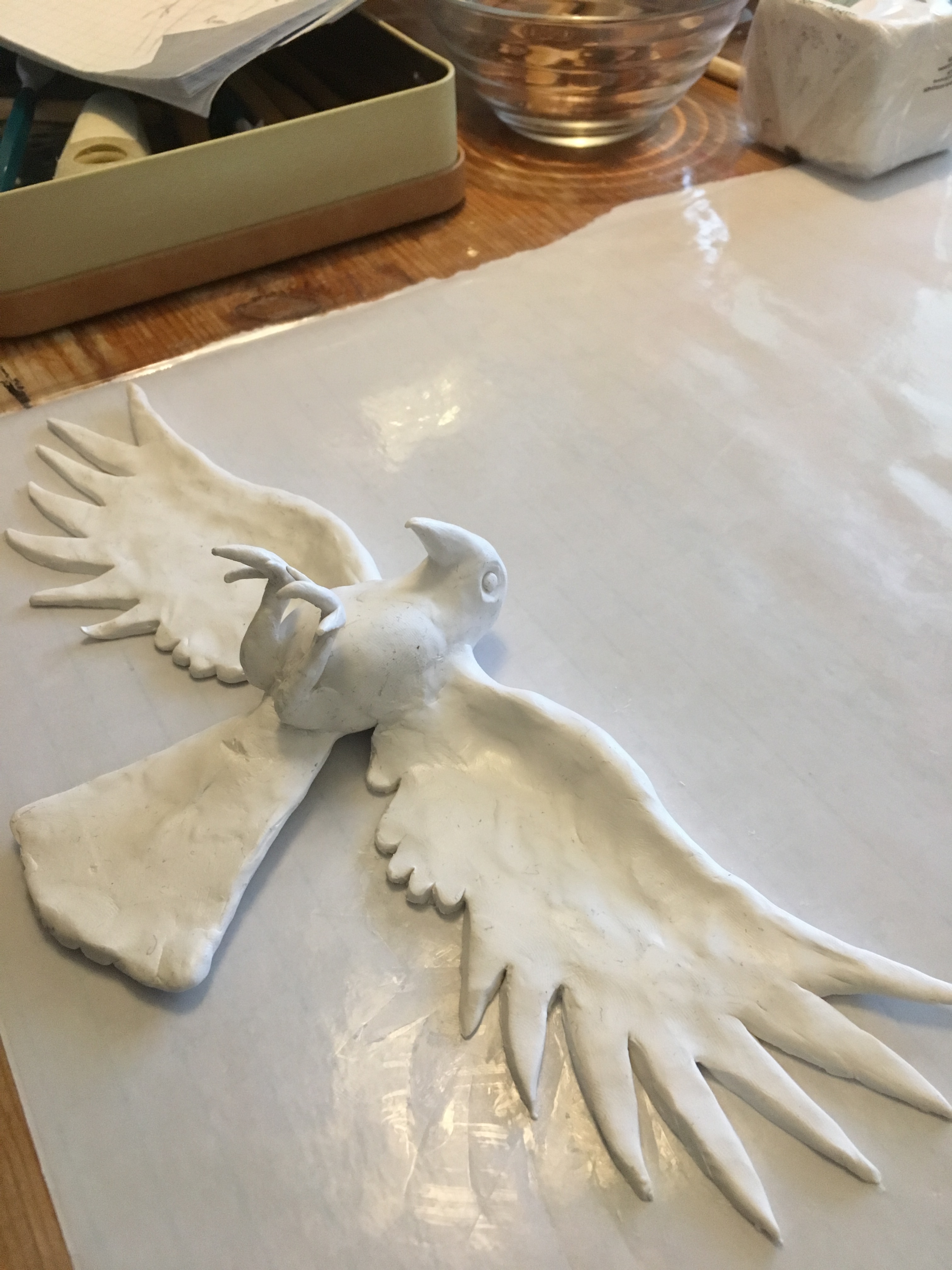

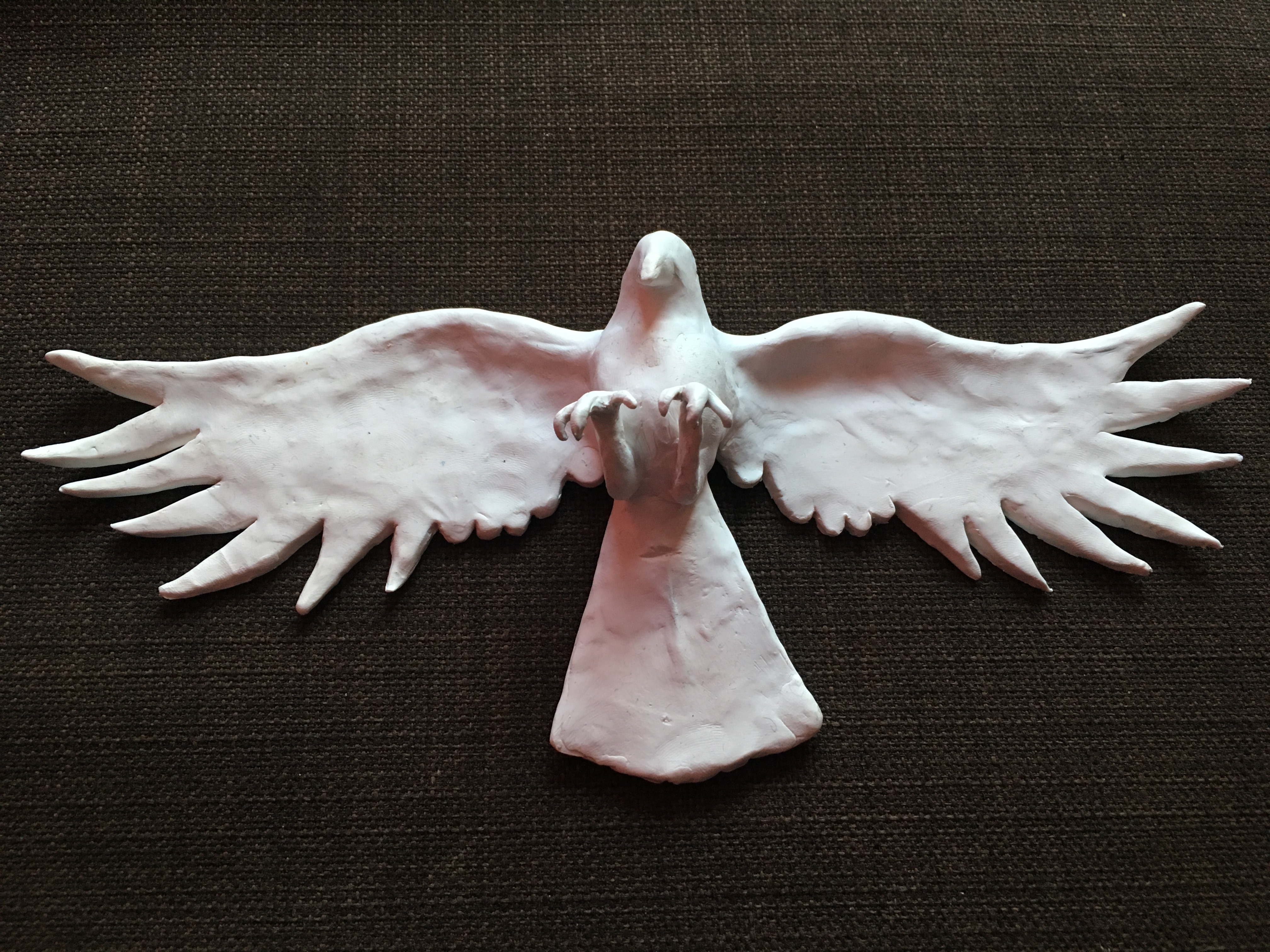

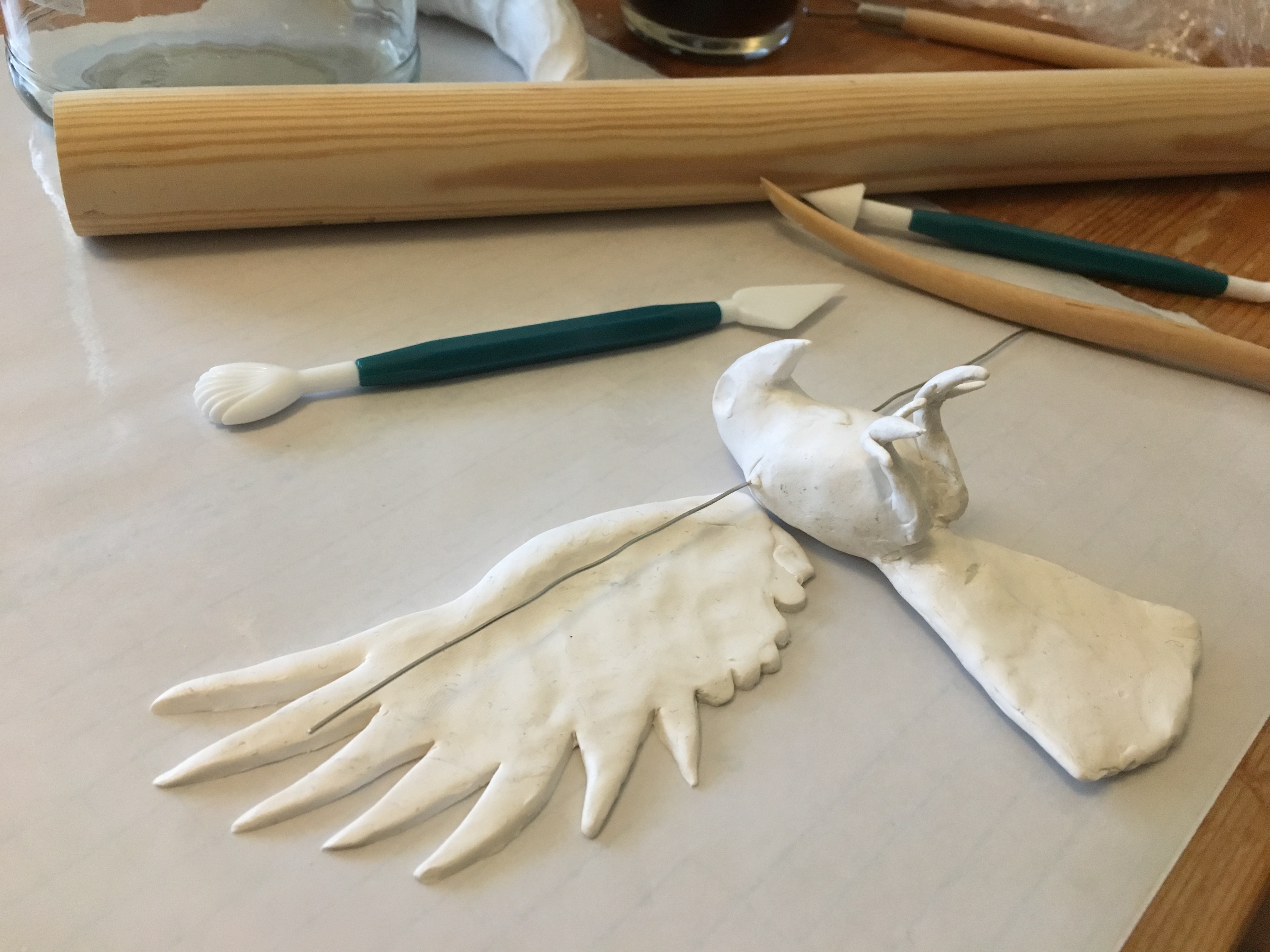

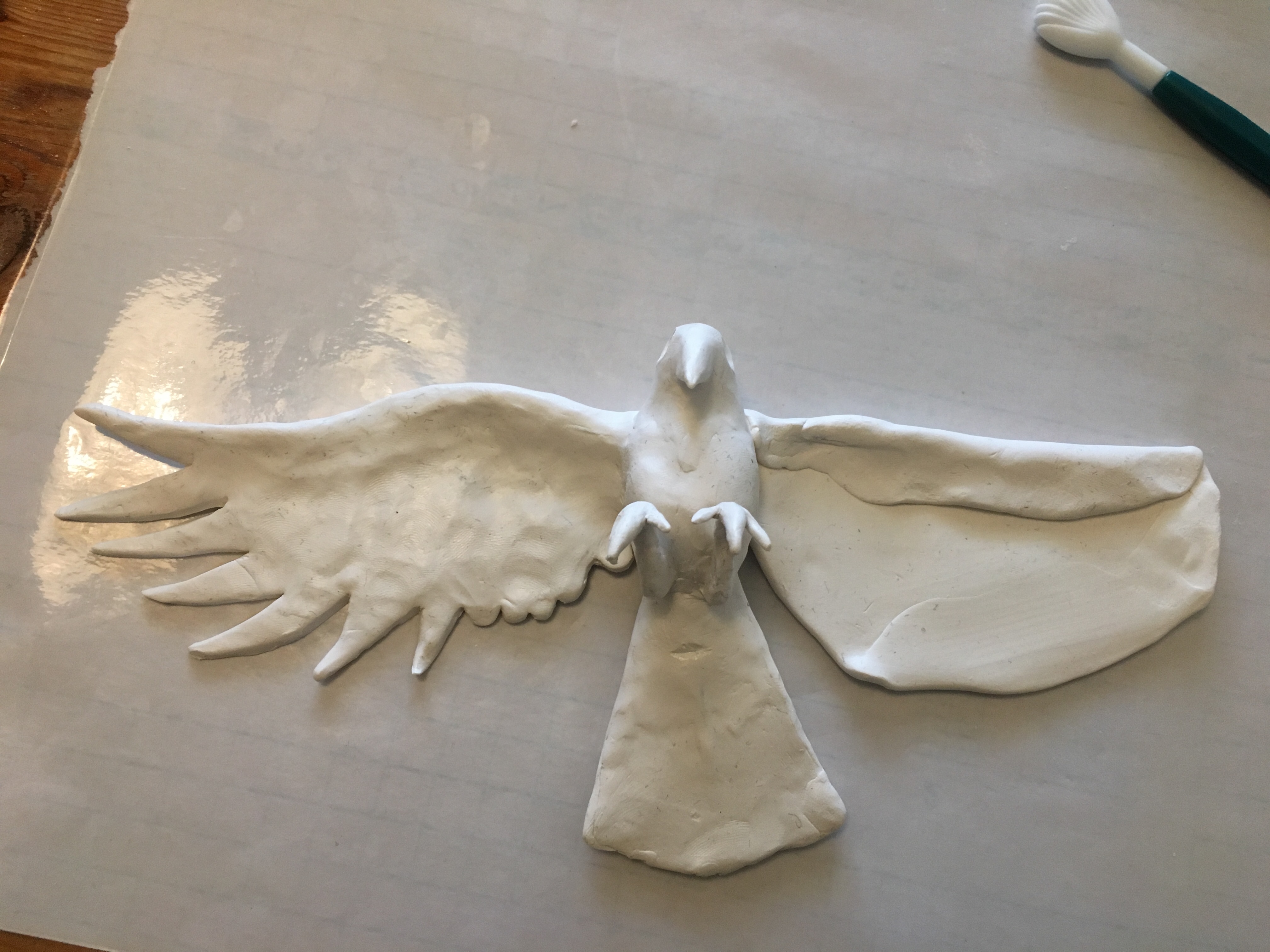

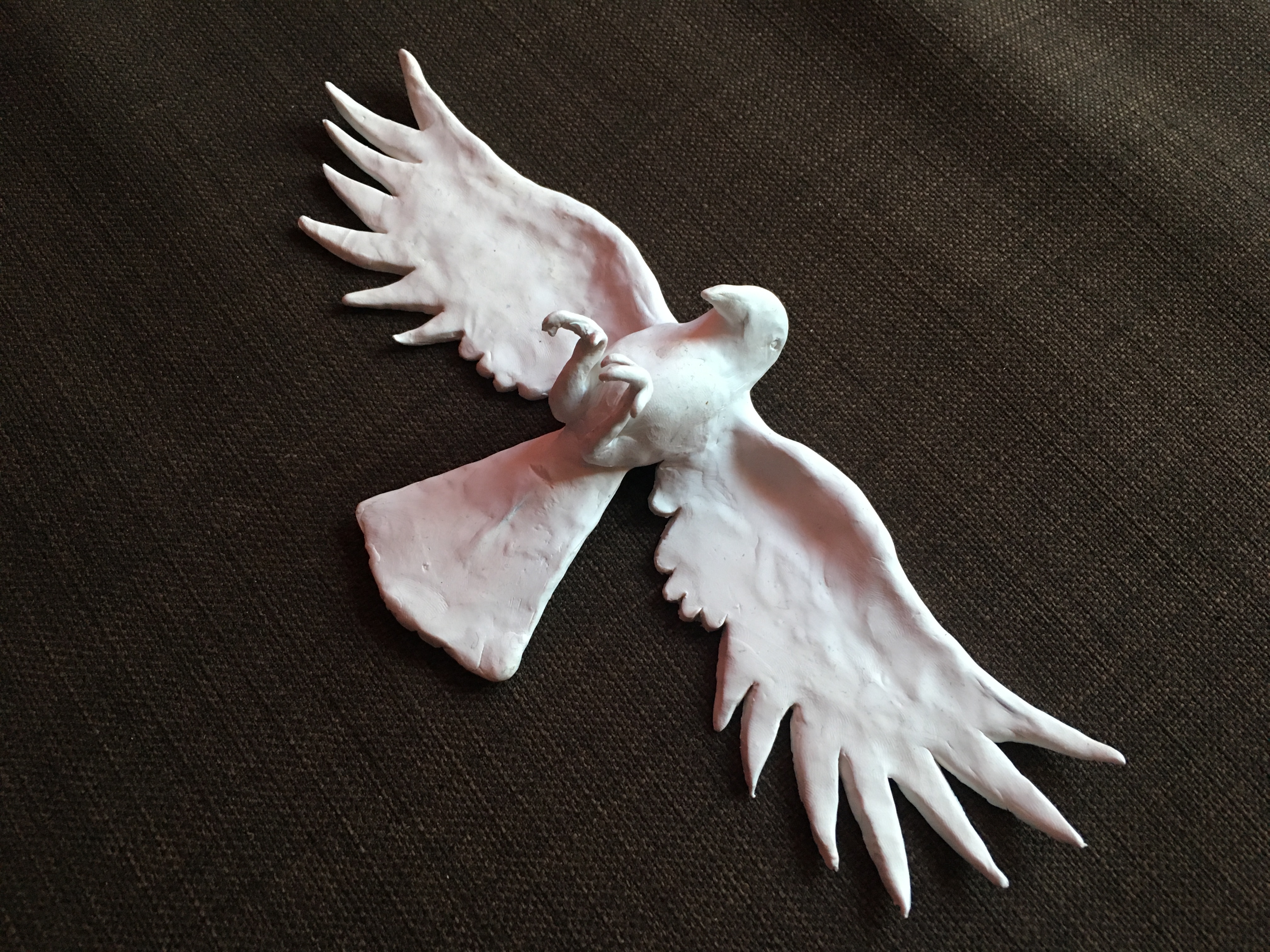

If you guessed “raven” you are correct! This bird is fully baked now so the clay is hard. It still requires a lot of detail work, smoothing, and tinkering, but I had to render the clay stiff enough to support my sculpting tools fixing and fussing around on it without getting bent out of shape. The rest of the shaping will be done with either an air-dry clay or Milliput. I haven’t decided yet.

This project has a long way to go still, I hope you’ll stay tuned for its evolution. Until next time, wish me luck!

It’s Goo Time

No that wasn’t a typo. Goo! Sticky slorpy blue goo! It is time to pour silicone all over this beauty!

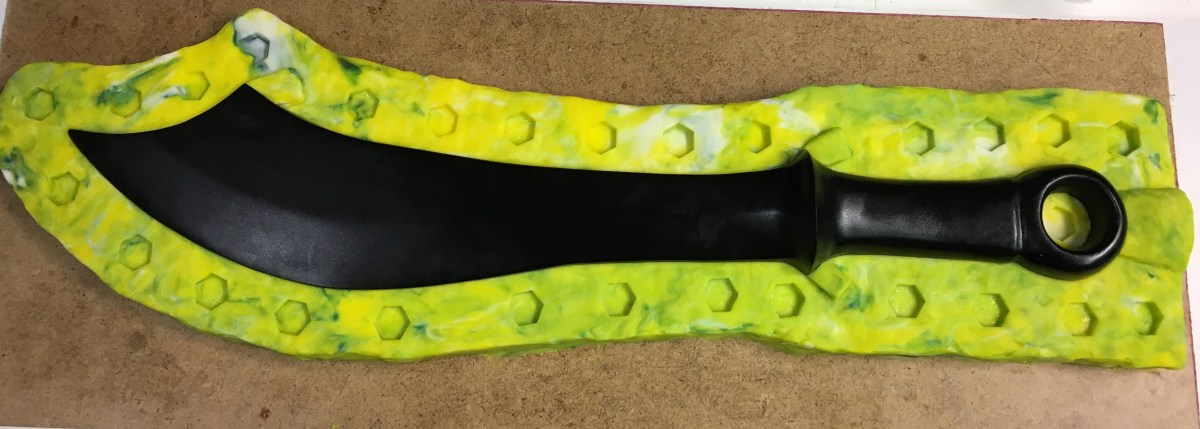

When you see something halfway buried in clay, you know the wacky wizardry is about to begin.

So right now I have Zaapiel sitting in its mould box (which I didn’t take a picture of because I was dead tired at the end of the day on Friday) awaiting my arrival this morning.

What else is afoot at the workshop? Well, I found a few DIY recipes for air-dry paper clay that I’m dying to try out. If it goes well, I’ll have a supply of much cheaper self-hardening clay I can use to sculpt my prototypes instead of using foam insulation. Foam insulation is not very good for the environment and is also annoyingly porous so it has to be sealed over and over again with layers of glue and paint before I can actually take a prototype mould of it. It’d be great if I didn’t have to do that! Let’s see if I can find those recipes for you and maybe we can try it together.

Yaaay! Let’s go get messy!

Back and in Black

Hello everyone! I’m so happy to be back from the holidays! I never know what to do with myself when I have time off. I’m kind of bad at relaxing, haha!

So what was I doing just before I ran away to sleep and eat sweets for a couple of weeks? I’m very pleased to present to you the new sleek shape of Zaapiel, my Arabian-inspired scimitar! Let’s take a look at how the sanding and refining process went.

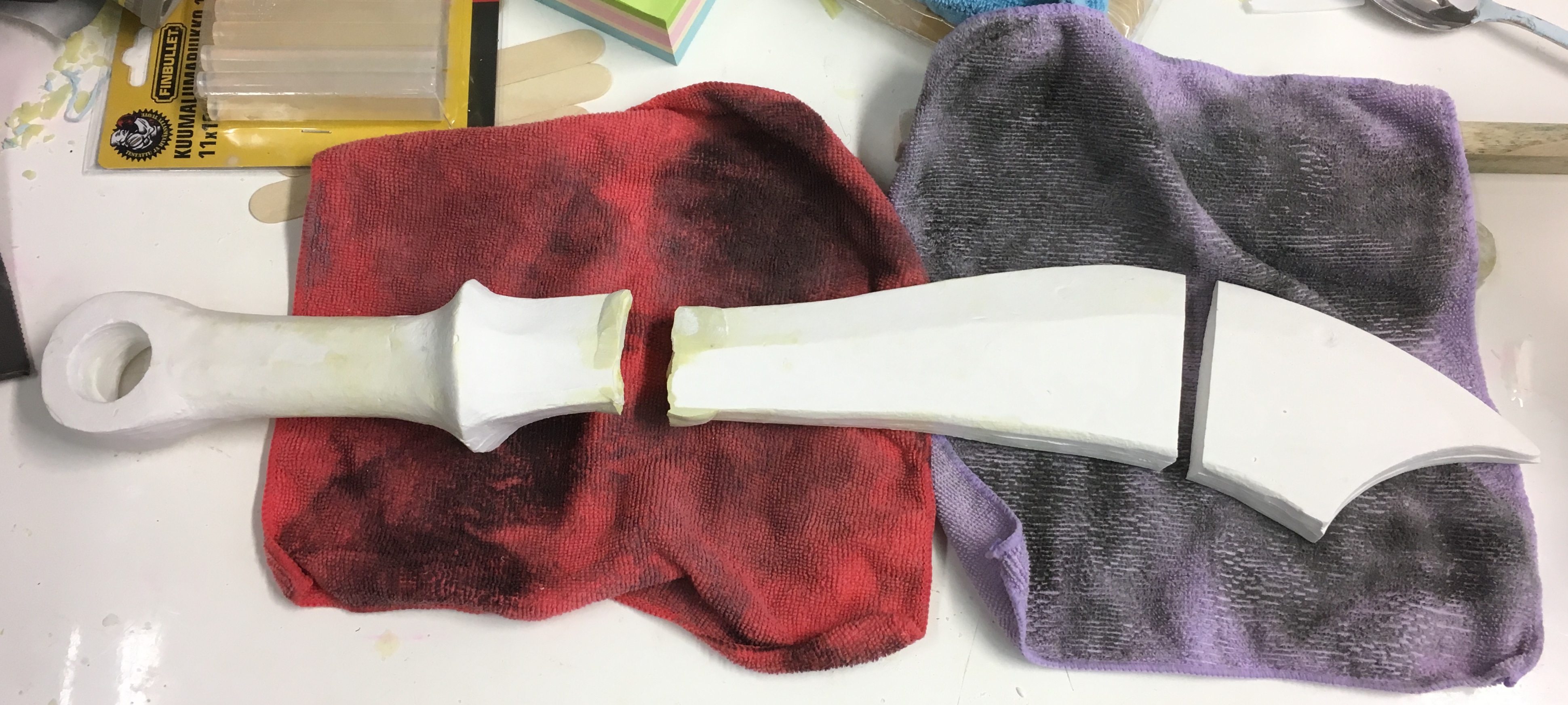

Now careful with the belt sander, or the sword might …

Oops.

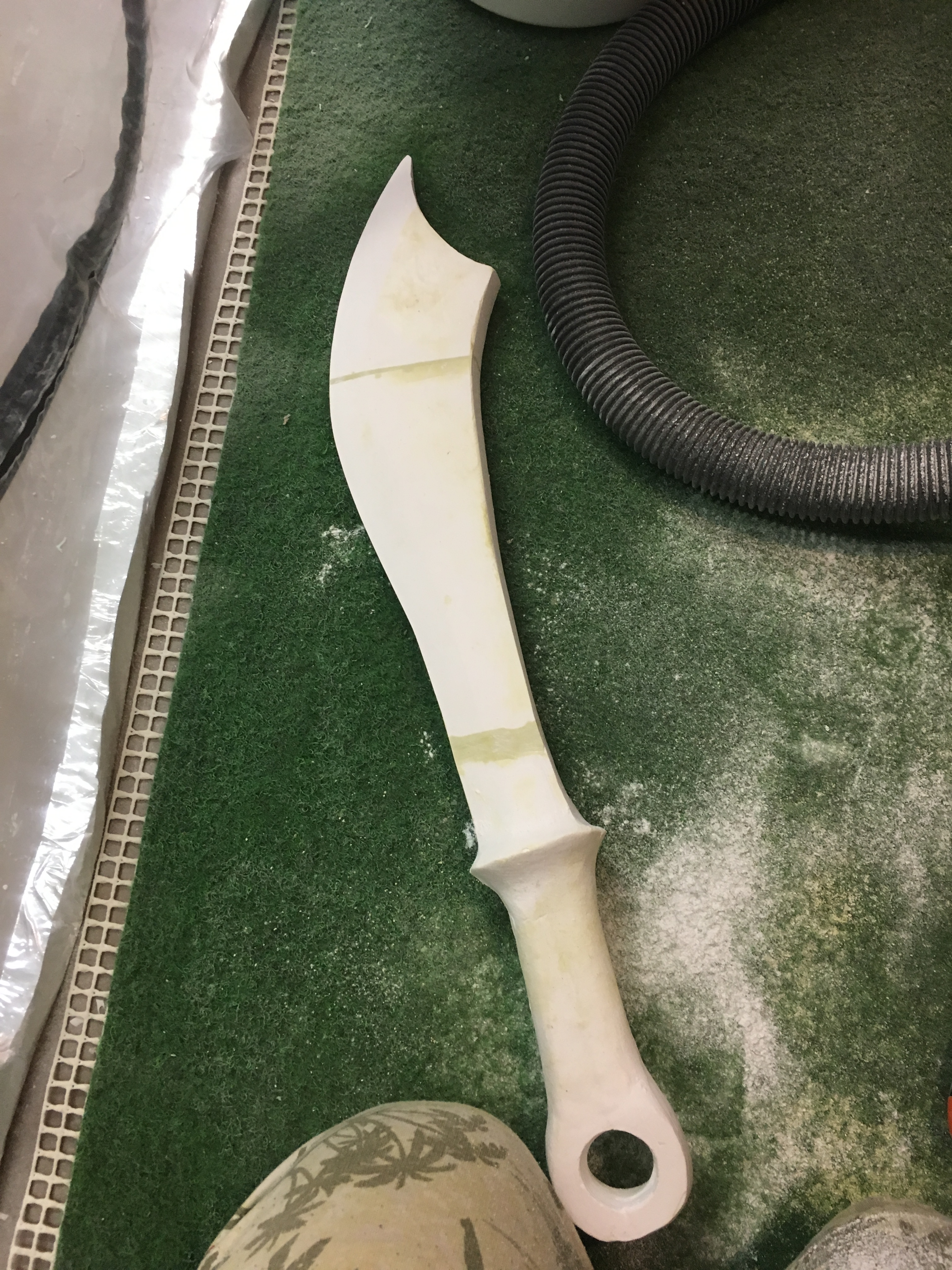

Well then! Time for some good ol’ Milliput to save the day. No worries. Good as new.

Now let’s … are you serious?

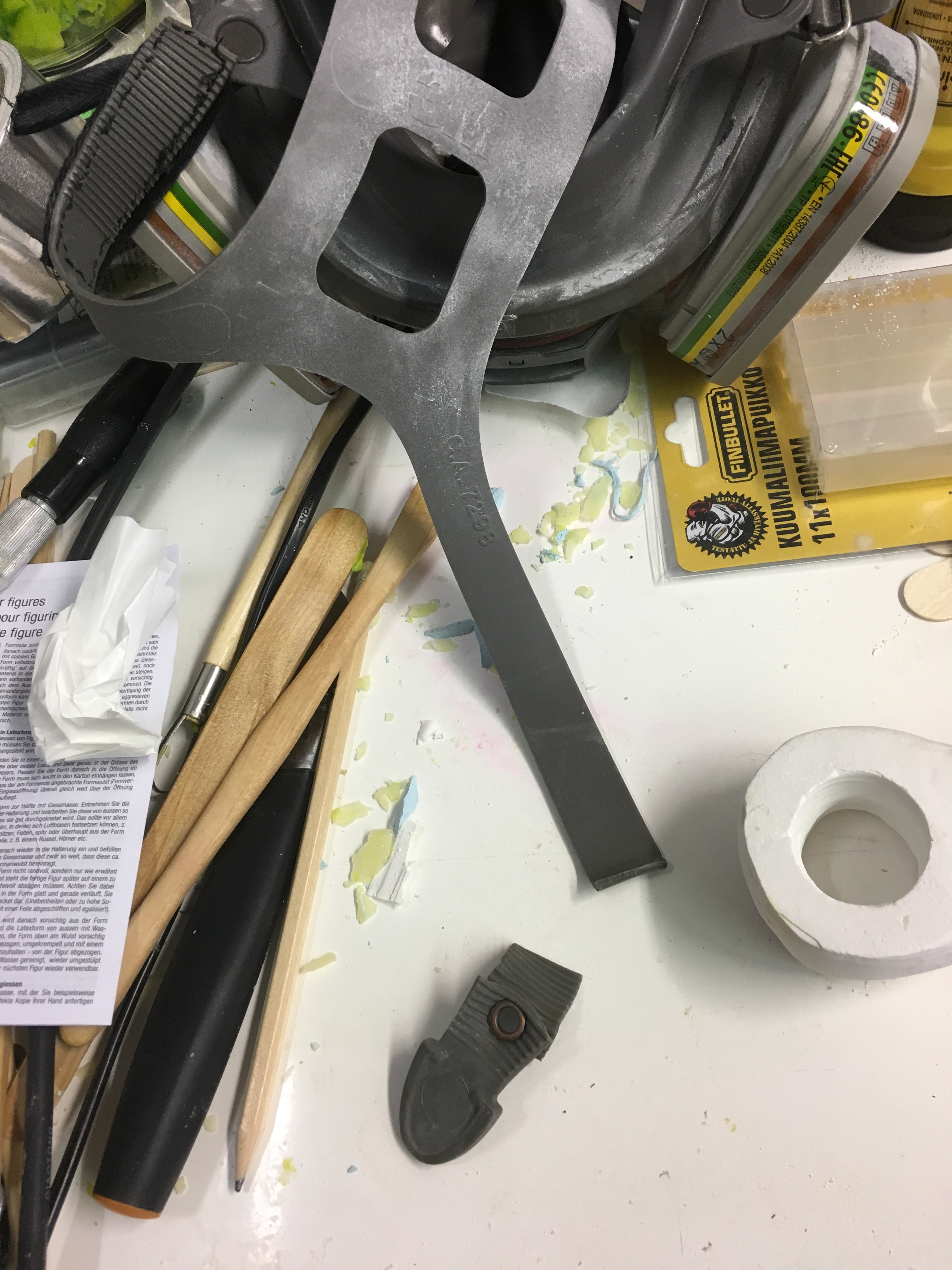

The other strap on my face mask broke so I was forced to stop and fix it again. Well, now that that’s taken care of, let’s go back to the belt sander and …

Really? Okay Chewie is way too aggressive for shaping plaster apparently. Milliput to the rescue! Again!

I went out and got myself a set of metal files and used them in combination with my wood rasps to get the sword all shaped as I wanted it.

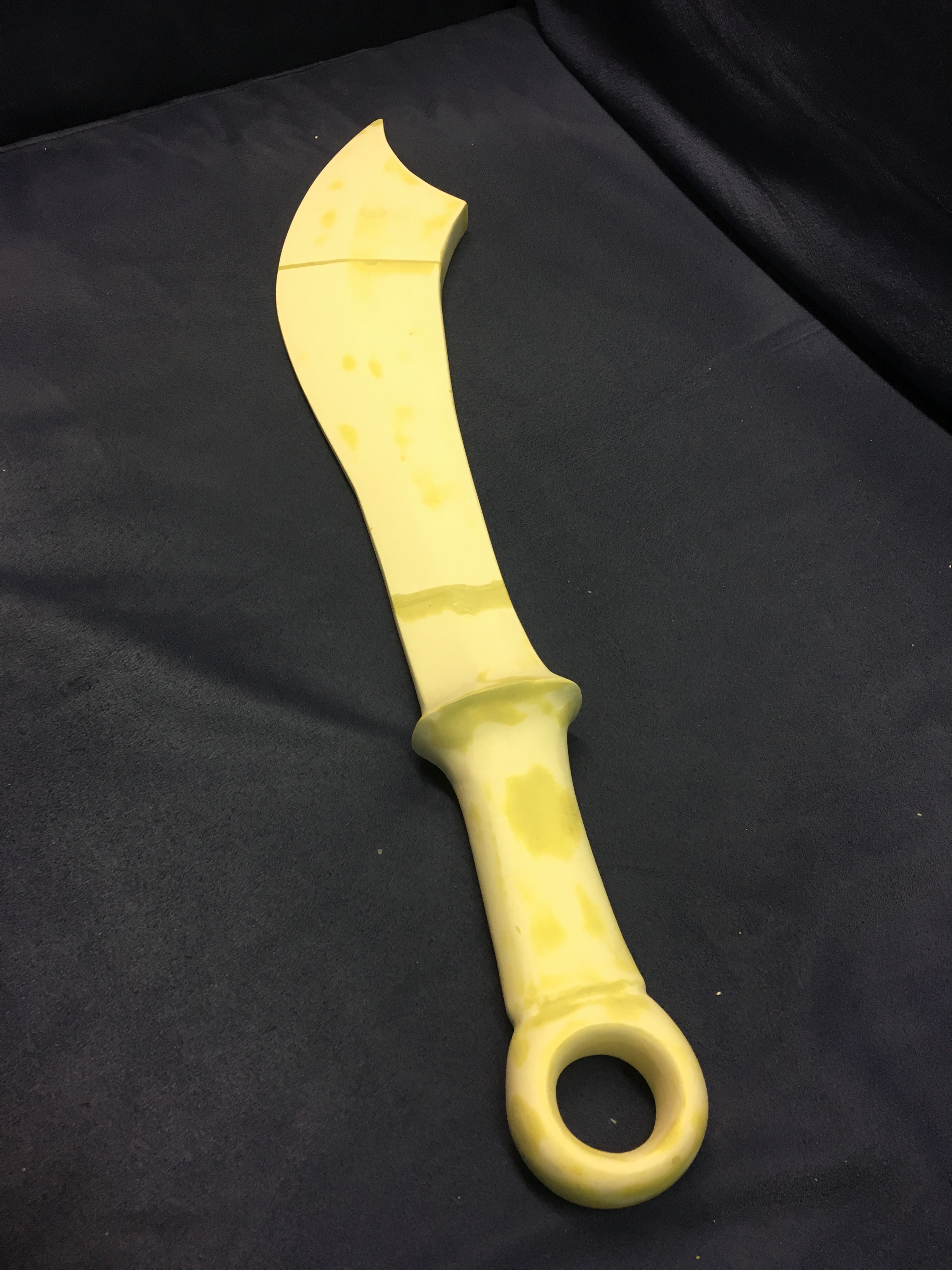

Then smeared Milliput all over any pin-holes, indents, or just anywhere I didn’t like the texture. Look at this thing! It looks like a troll sneezed on it. Ew.

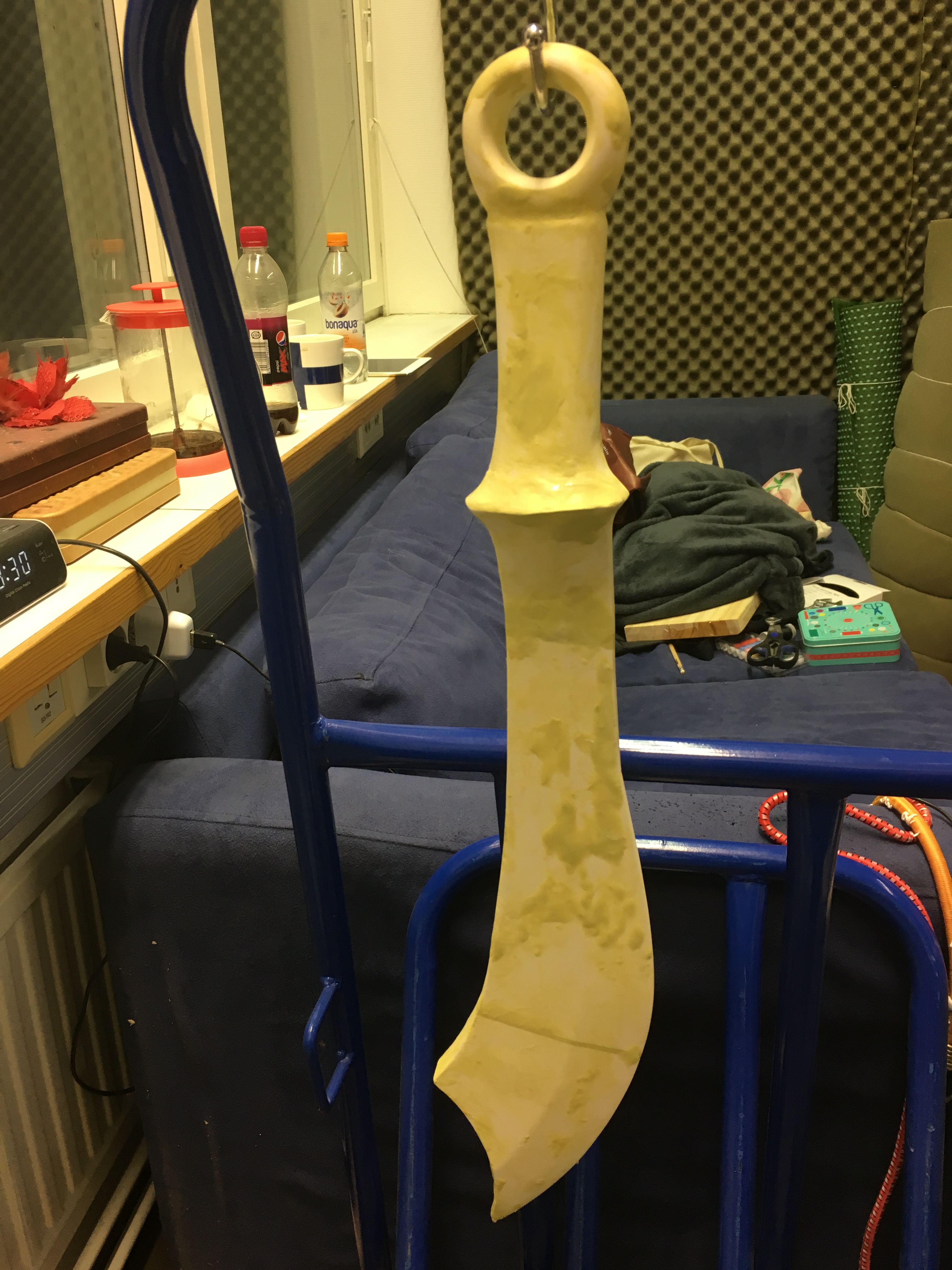

Here we are all sanded nicely (by hand of course) and looking decidedly less sneezed-upon.

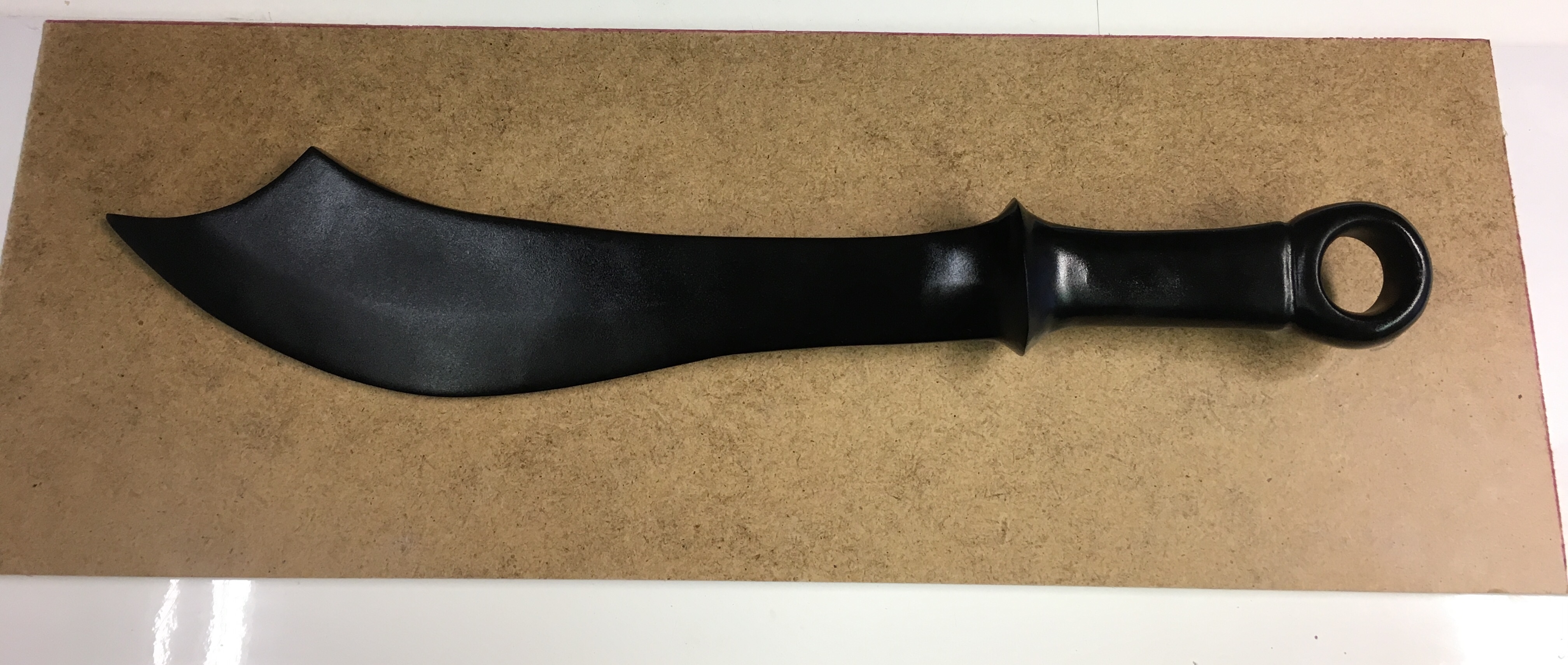

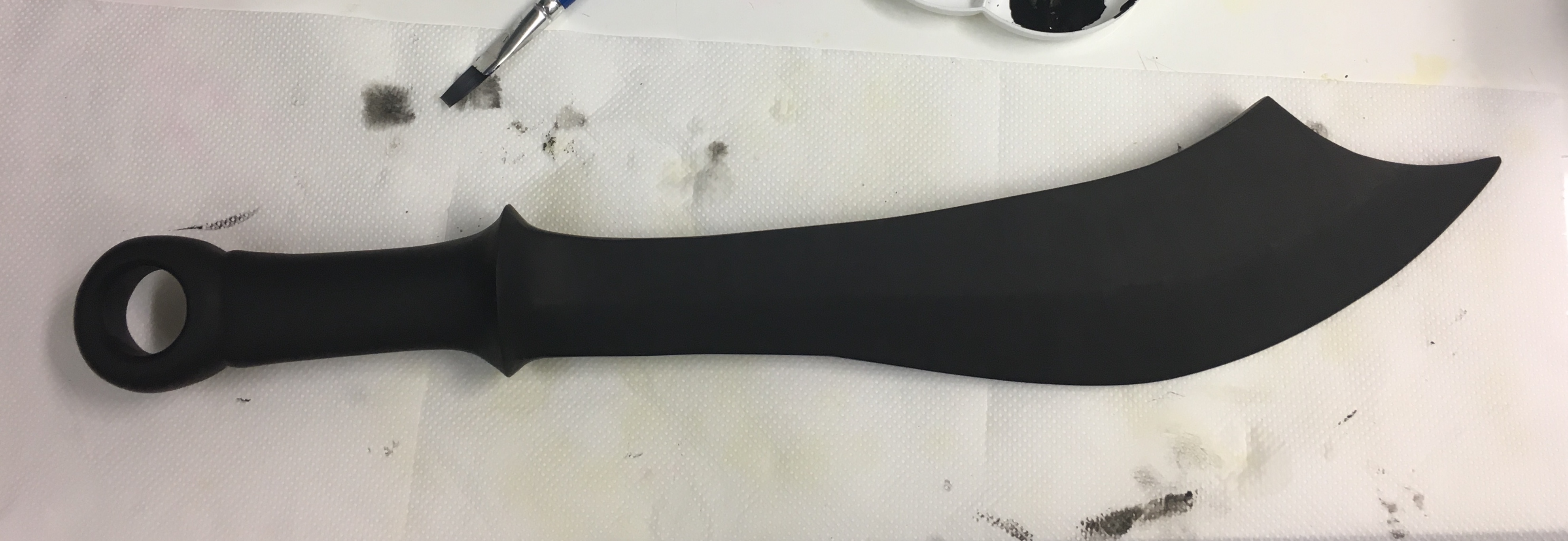

Now it’s time to get it all painted and sealed for the final moulding. The paint I happened to have on hand at the time was black. So we get a nice svelte-looking sword to feast our eyes upon.

Hurrah! Now it’s time to order some silicone and do the final layers of sealing. While I await the arrival of my goo, I will polish this beauty up to the best shine I can manage and  work on a secret sculpting project that I haven’t yet revealed. What could it be? This mystery item is not related to Shadowhunters nor is it a doll! Stay tuned for future reveals!
